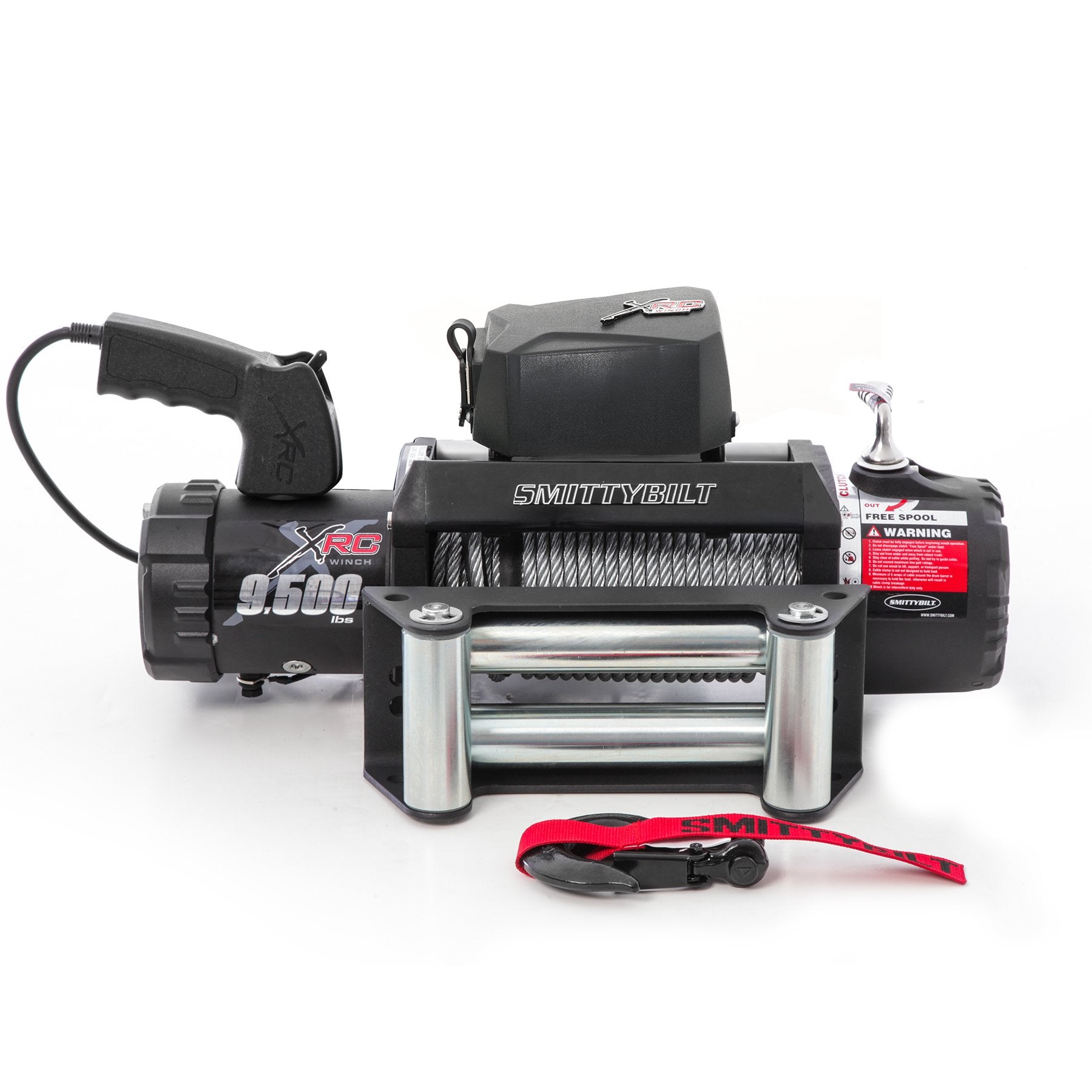

Smittybilt Universal XRC Gen 2 9500lb Winch with Steel Cable, 97495

Description:

The Smittybilt XRC Gen 2 winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC series winches can handle any situation you can get into. Every XRC winch features a series wound 6.6 hp motor and a 3-stage planetary gear system with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is offered in a sleek and stylish finish, including a rugged UV-resistant matte black coating with stainless steel hardware and oversized Aluminum crossbars to provide you with a great looking system that ensure last you a lifetime. Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation.

Features:

• 3-Year Electrical / Limited-Lifetime Mechanical Warranty
• IP67 waterproof
• Weight 99lbs
• Rated Line Pull: 9,500Lbs (4,309kgs) single-line
• 2.5" drum diameter
• Bolt Pattern: 10" x 4.5 "
• Recommended Battery: 650CCA minimum for winching
• 5' battery power cables
• Brake: Automatic In-Drum
• Wired remote control with 11.5' Lead
• 4-way roller fairlead
• 3-stage planetary gearbox
• 5/16" x 93.5' steel cable
• 6.6HP series-wound motor
• Dimensions: 22.3" L x 5.4" W x 9.4" H
• Sliding ring gear clutch
• 161.28:1 gear ratio

Vehicle Fitment:

• Universal Fit

Installation Instructions:

https://www.procompusa.com//wp-content/uploads/product-images/smittybilt/SB97495_INST.pdf
