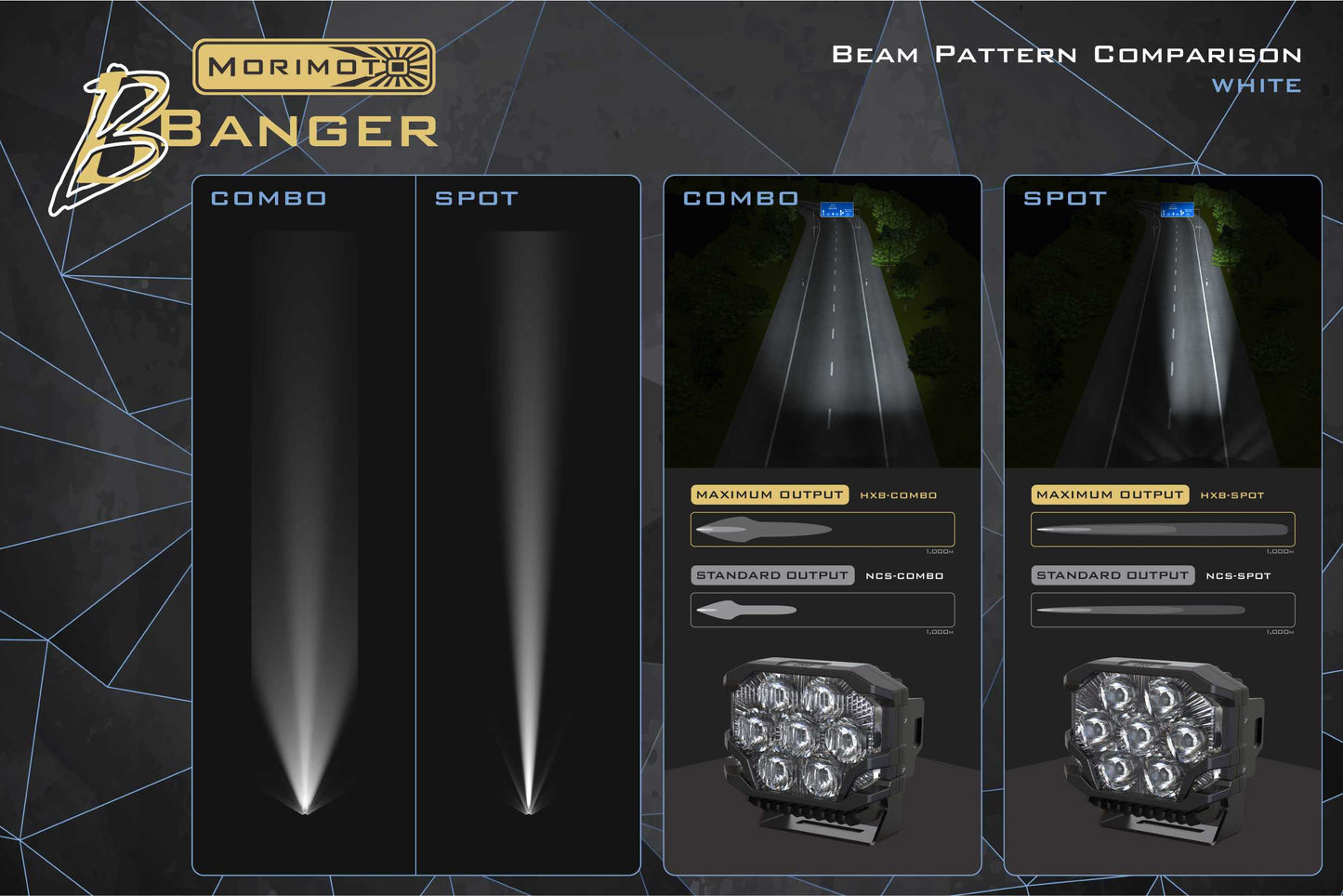

Morimoto BigBanger NCS LED Pods, With Included U Brackets, Amber DRL, Spot, White, Each, Universal, BAF118

Fitment:

• With Included U Brackets Universal

Specs:

• Intensity: 495,000 Cd (Post Warm-Up) (4,950 lux @ 10m)
• Input Voltage: 9-18V DC
• Input: Integrated Deutsch DT 4-Pin
• Power (Stabilized): 36.5w, 30w (Backlight), 8w (Dim Backlight)
• Current (@ 13.5V DC): 2.74A (Stabilized), 3.33A (Startup), 2.2A (Backlight), 600mA (Dim Backlight)
• Peak Luminosity (lm)(raw): 3,150lm
• Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D
• Light Source: 7x Nichia NCSW131F, 12x CREE XP-E2 PC Amber (Backlight)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
• IP RATING: IP69K (Dust / High Pressure Water Resistant)
• LED Pod: 1x Morimoto BigBanger NCS Spot (White) (Sold Each)
• Bracket: 1x Universal Bottom Mount U Bracket
• Hardware: Complete pack (stainless steel)
• Warranty: Lifetime Limited

Installation Guide

For detailed instructions on installation, Click Below
