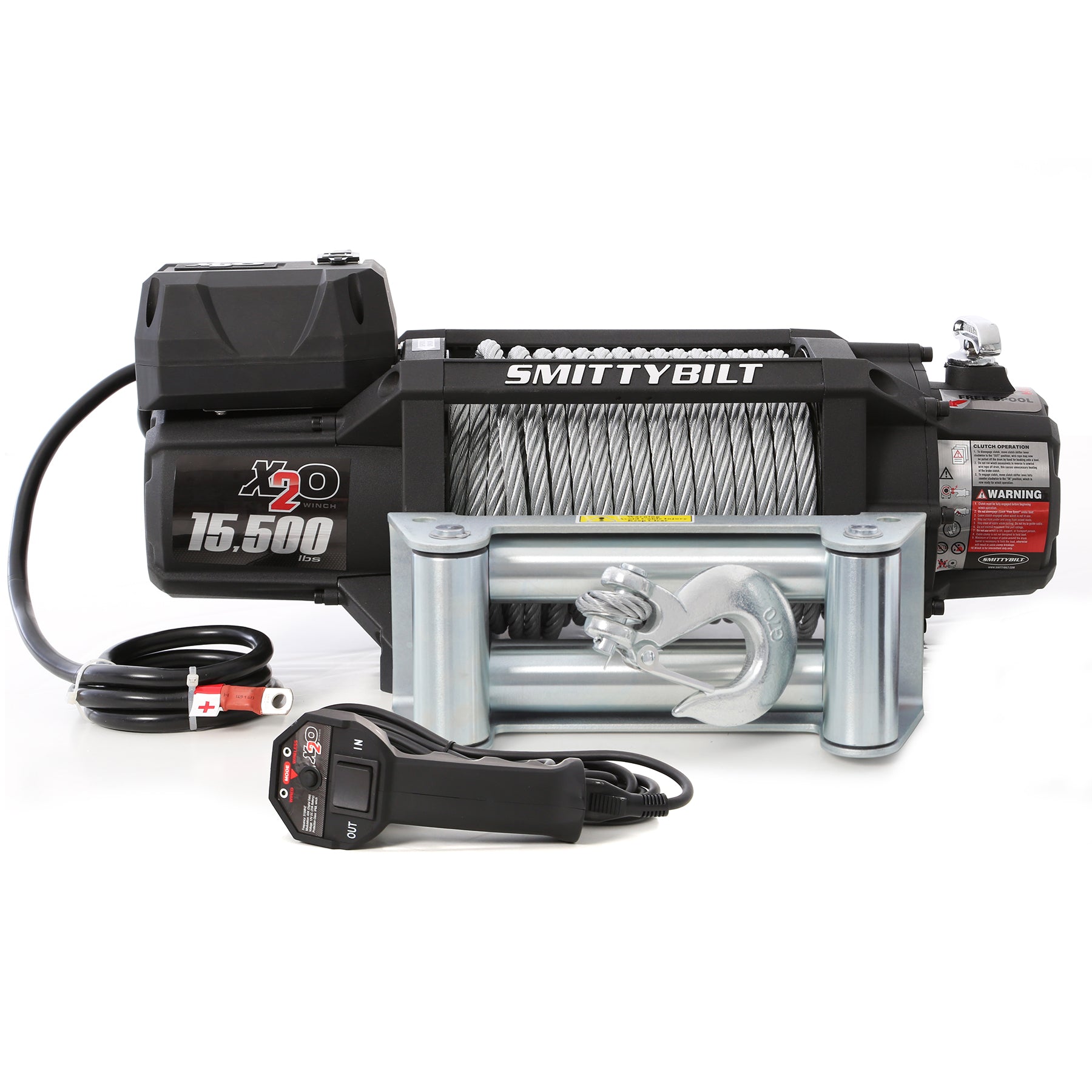

Smittybilt X2O Gen 2 15,500 lb Winch with Steel Cable, Universal, 97515

Description:

The Smittybilt X20 Gen 2 Winches have been enhanced in almost every area for increased performance and trouble free operation. Every X20 winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X20 line features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X20 also features optimized gear ratios that are lightning-fast line speeds. If you're looking for something more versatile, check out the X20 Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope. And finally, all X20 winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X20 winch to be there every time, in every situation.

Features:

• Gear Train: 3-Stage Planetary
• Clutch: Sliding Ring Gear
• Waterproofing: IP68 Rating
• Remote Control: Included
• Motor: 6.6hp Series Wound
• Recommended Battery: 650CCA Minimum for Winching
• Drum Size: Diameter 3.45”
• Finish: Textured Black
• Weight: 150.0Lbs (45.0Kgs)
• Battery Leads: 25mm2, 72”(1.83m)1
• Fairlead: 4-Way Roller
• Control: Remote Switch, 12’ (3.7m) lead
• Brake: Automatic Out-Of-Drum
• Mounting Bolt Pattern: 10.0” x 4.50”
• Cable: 98.5’ 3/8” Diameter
• 5-Year Electrical / Limited Lifetime Mechanical Warranty
• Gear Ratio: 430:1
• Rated Line Pull: 15,500Lbs (7,045kgs) Single Line
• Overall Dimensions: (L x W x H) 22.3” x 7.5” x 10.7”

Vehicle Fitment:

• Universal Fit
