TeraFlex Jeep Cherokee TJ Dana 30/44 High Steer System, 4-6" Lift

Details:

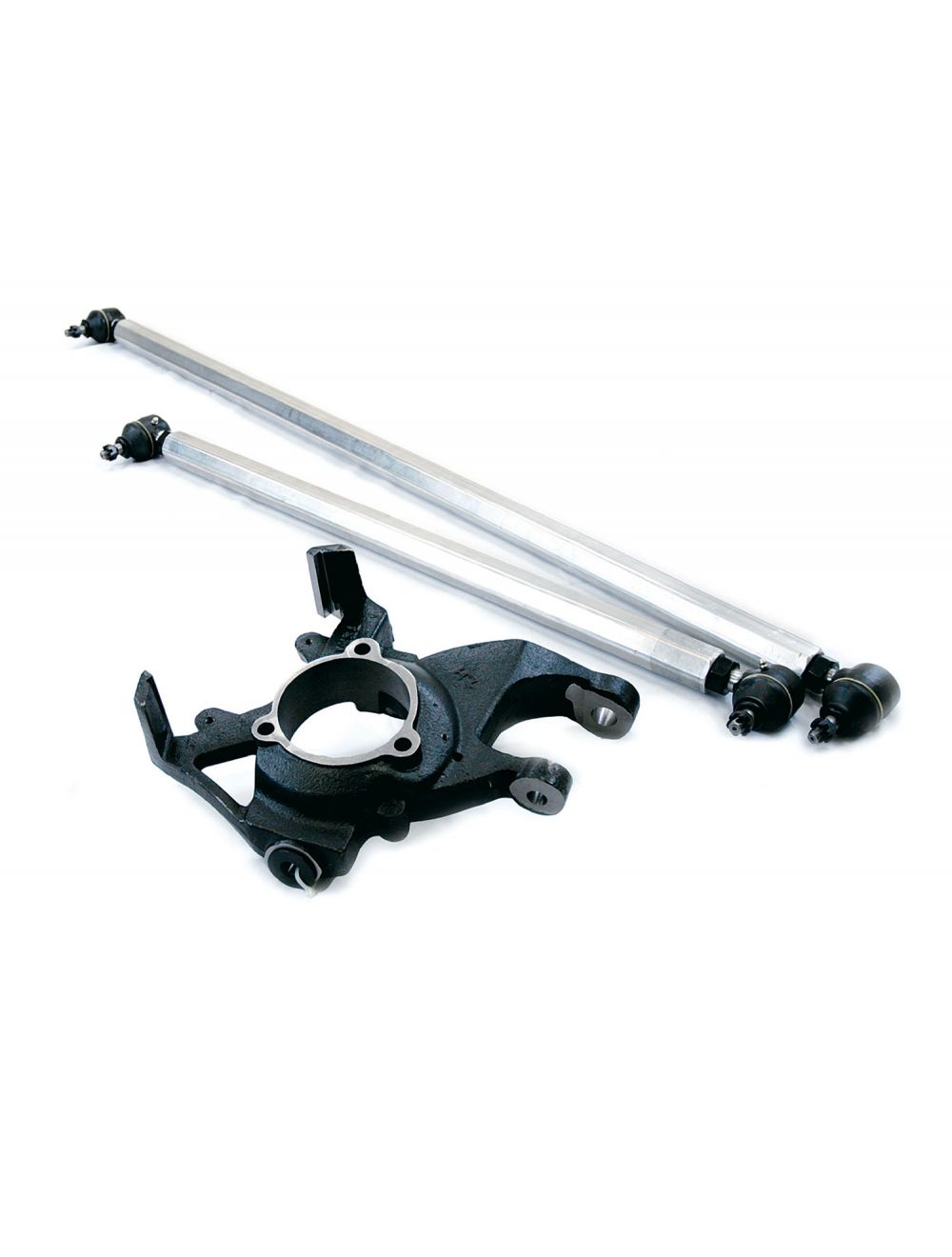

The TeraFlex TJ: Pro LCG Dana 30/44 High Steer System addresses many front-end steering issues associated with lifted TJ Wrangler/Unlimited models. This system beefs up the steering components of the Dana 30 or Rubicon Dana 44 front axle, helps maximize ground clearance, and corrects steering geometry for superior highway drivability. HIGHLY RECOMMENDED for TJ Wrangler/Unlimited models with 4 Inch� or more lift. NOT an all-inclusive kit Inch” may require additional modifications. Also fits ZJ Grand Cherokee, XJ Cherokee, and MJ Comanche with Dana 30 front axles Inch” REQUIRES additional modifications. The High Steer HD Aluminum Tie Rod and High Steer HD Aluminum Drag Link converts the TJ Inch™s stock steering to a cross steering or a flipped steering setup. InchœFlipping Inch� the HD Drag Link over the Knuckle helps eliminate front-end shimmy, bump steer, and other alignment issues. This High Steer System (# 1813000) combines our High Steer Knuckle (# 4828490) with our High Steer HD Aluminum Tie Rod Kit (# 4920251), High Steer HD Aluminum Drag Link Kit (# 4920244). Most replacement components available separately. Does NOT include High Steer Sway Bar Mount Kit (# 4959100), 9550 VSS Steering Stabilizer Mount Kit (# 1510090), or Front Sway Bar Quick Disconnect Kit (# 1743092). We also RECOMMEND our Front High Steer HD Adjustable Track Bar & Bracket Kit (# 4923200 Inch” NOT INCLUDED) and Drop Pitman Arm (# 1922133 Inch” NOT INCLUDED). Compatible with all factory and aftermarket axle shafts, ball joints, and wheel hubs. Does not affect operation of ABS.

Features:

• Installation DOES NOT REQUIRE any cutting or removal of factory bracketry High Steer Knuckle w/ 3 Tapered Inserts (# 4828490):
• Cast from HD ductile iron
• Reinforces key section areas prone to stress and deflection
• Maintains correct steering geometry angles for superior highway drivability
• Provides HD solution for several weak vulnerabilities found in the stock axle steering configuration
• Increases Tie Rod ground clearance by more than 1-1/8 Inch� to reduce Tie Rod damage and bending High Steer HD Aluminum Tie Rod Kit Inch“ Offset Taper Ends (# 4920251):
• Constructed from 1.5 Inch� hexagonal 6061-T6 aluminum Inch” higher specific strength than 1018 steel
• Yield strength of 45,000 lbs., yet 1/3 the weight of steel
• Aluminum construction deflects 3x further than steel allowing for return to its original shape
• Hexagon shape allows tightening of jam nuts w/ 1.5 Inch� wrench
• Offset Tie Rod Ends increase differential cover clearance at full turn High Steer HD Aluminum Drag Link Kit Inch“ Stock Taper Ends (# 4920244):
• Bolts directly to new High Steer Knuckle
• Can be used to convert to cross steering or over the Knuckle for flipped steering
• Helps eliminate front end shimmy and other alignment issues
• Extruded Drag Link eliminates excess flex during binding and high load steering maneuvers
• Constructed from 1.5 Inch� hexagonal 6061-T6 aluminum Inch” higher specific strength than 1018 steel
• Yield strength of 45,000 lbs., yet 1/3 the weight of steel
• Aluminum construction deflects 3x further than steel allowing for return to its original shape
• Hexagon shape allows tightening of jam nuts w/ 1.5 Inch� wrench
• Tie Rod Ends feature 4140 chromoly ball/stud and 1045 carbon steel housing

Fitment:

Vehicle(s):
• TJ Wrangler (short wheelbase)
• LJ Wrangler Unlimited (long wheelbase)
• ZJ Grand Cherokee
• XJ Cherokee
• MJ Comanche Axle(s):
• Dana 30 front axle
• Rubicon Dana 44 front axle Specs:
• Lift Height: 4 Inch“6 Inch�
• Lift Kit: 4 Inch“6 Inch� Long Arm Suspension System

Includes:

High Steer Knuckle w/ 3 Tapered Inserts (# 4828490):
• High Steer Knuckle
• Tie Rod/Drag Link Stock Tapered Insert Sleeve (0.75 Inch� O.D.) (# 990175) x 2
• Tie Rod/Drag Link Stock Tapered Insert Sleeve (0.875 Inch� O.D.) (# 990113) High Steer HD Aluminum Tie Rod Kit (# 4920251):
• High Steer HD Aluminum Tie Rod
• Tie Rod End Inch“ Offset Stock Taper Inch“ 7/8"-18 (L.H. Thread) (# 4920231)
• Tie Rod End Inch“ Offset Stock Taper Inch“ 7/8"-18 (R.H. Thread) (# 4920232)
• Boot (Tie Rod End or Drag Link End) (# 4925100) x 2 High Steer HD Aluminum Drag Link Kit (# 4920244):
• High Steer HD Aluminum Drag Link
• Drag Link End Inch“ Stock Taper Inch“ 7/8"-18 (L.H. Thread) (# 4920221)
• Drag Link End Inch“ Stock Taper Inch“ 7/8"-18 (R.H. Thread) (# 4920222)
• Boot (Tie Rod End or Drag Link End) (# 4925100) x 2
