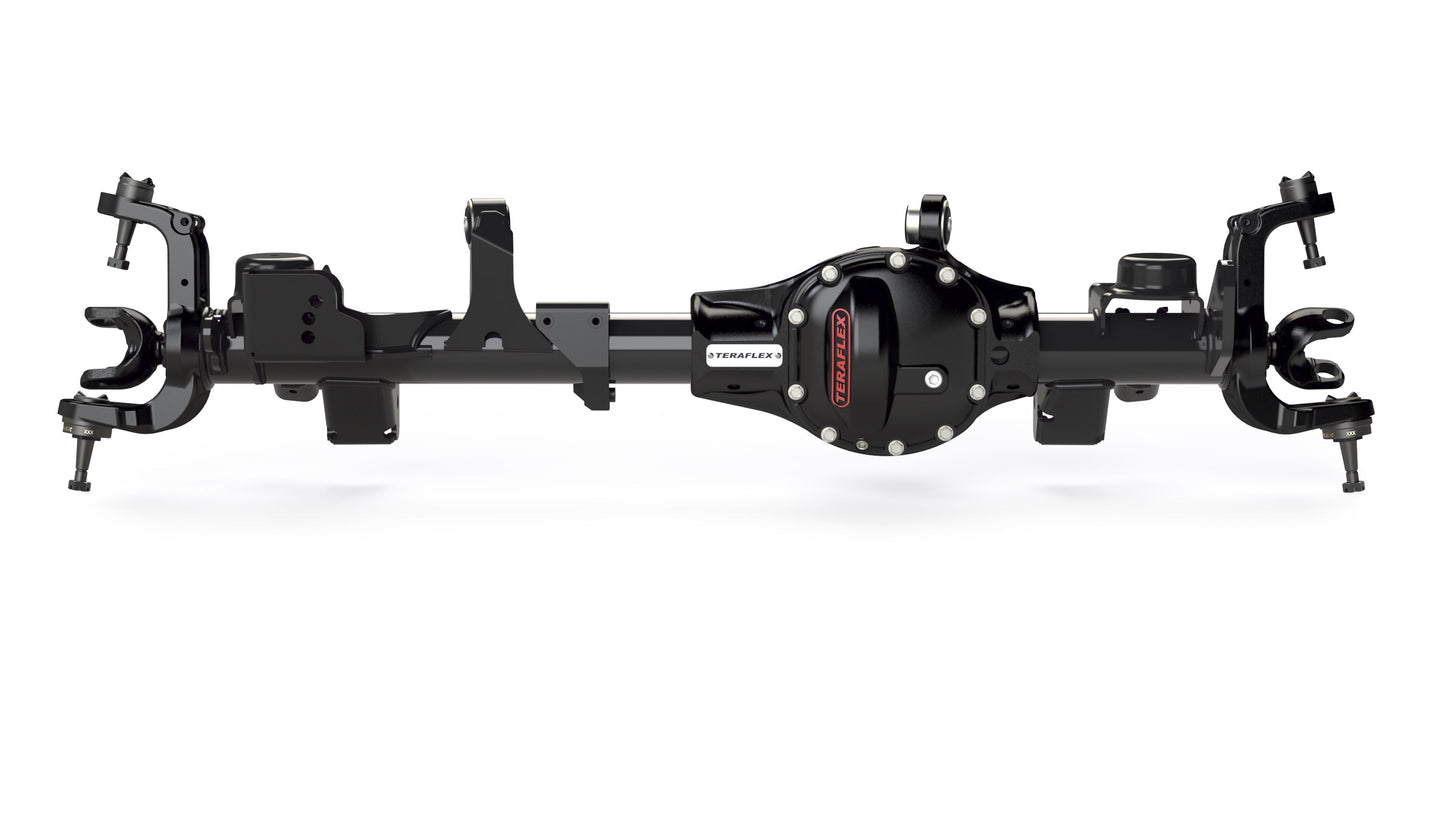

TeraFlex Jeep Gladiator JL Tera30 HD Front Axle Housing, Bare, 0-5" Lift

Details:

TeraFlex HD Front Axle Housings are perfect for replacing bent, broken, or damaged axles JL and JK Wrangler/Unlimited and JT Gladiator vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle’s weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes, front inner axle shafts (JL and JT), bracketry, and forged inner knuckles as well as pre-installed inner axle seals and upper control arm bushings. Transfer your existing internal components (differential, ring & pinion) and outer components (stub shafts, unit bearings, knuckle assembly, brakes, sensors) to the new housing! Compatible with Dana 30 AdvanTEK (M186) internal components.

Features:

JL Wrangler/Unlimited:
• Lift Height: 0–5”
• WMS-WMS: 66.5”
• Axle Tube: 3.25” x 0.5”
• Locker: NA
• Axle Shafts: 27-Spline
• Wheel Bolt Pattern: 5x5”
• Gear Ratio: NA
• Eliminates center axle disconnect
• Compatible with Dana 30 AdvanTEK (M186) internal components
• CALL CUSTOMER SERVICE FOR OPTIONS Tera30 HD Front Axle:
• 3.25” O.D. x 0.5” wall extreme duty axle tube increases torsional strength to resist bending (JL)
• Asymmetric housing design for extra-long tube side strength
• Pre-installed inner axle seals
• HD forged inner knuckles w/ greater upper and lower section strength
• Ductile cast iron housing w/ increased rib gussets
• HD ductile iron differential cover w/ increased cover mounting area
• Smooth radius bottom design to glide over rocks and obstacles
• Integrated lower control arm skid plates
• High-flow oil passages and bottom oil drain hole for simple fluid changes
• UV protected triple-stage powder coat for corrosion resistance
• 1/4”-thick CNC laser cut axle brackets for extreme strength
• Integrated factory location upper control arm mount
• Pre-installed upper control arm bushings
• Proper pinion angle and raised track bar bracket for lifted applications
• Pre-drilled holes on spring perches for bump stop extension bolts
• Retains all factory ESP, ABS, and speedometer sensor capability
• 100% engineered, designed, and built in the USA w/ new components
• 1-Year/Unlimited Mileage Warranty

Fitment:

Vehicle(s):
• JL Wrangler (2-door)
• JL Wrangler Unlimited (4-door) Specs:
• Lift Height: 0–5”
• WMS-WMS: 66.5”
• Axle Tube: 3.25” x 0.5”
• Locker: NA
• Axle Shafts: 27-Spline
• Wheel Bolt Pattern: 5x5”
• Gear Ratio: NA
• Eliminates center axle disconnect
• Compatible with Dana 30 AdvanTEK (M186) internal components
• CALL CUSTOMER SERVICE FOR OPTIONS

Includes:

• Tera30 HD Front Axle Housing
• Tera30 HD Axle Shafts – Front Inner Left – 27-Spline
• Tera30 HD Axle Shafts – Front Inner Right – 27-Spline
• TeraFlex HD Ball Joint Kit (# 3452010)
• Factory Yoke
• Dana 30 / Tera30 HD Differential Cover Kit (# 3990630)
• CALL CUSTOMER SERVICE FOR OPTIONS
