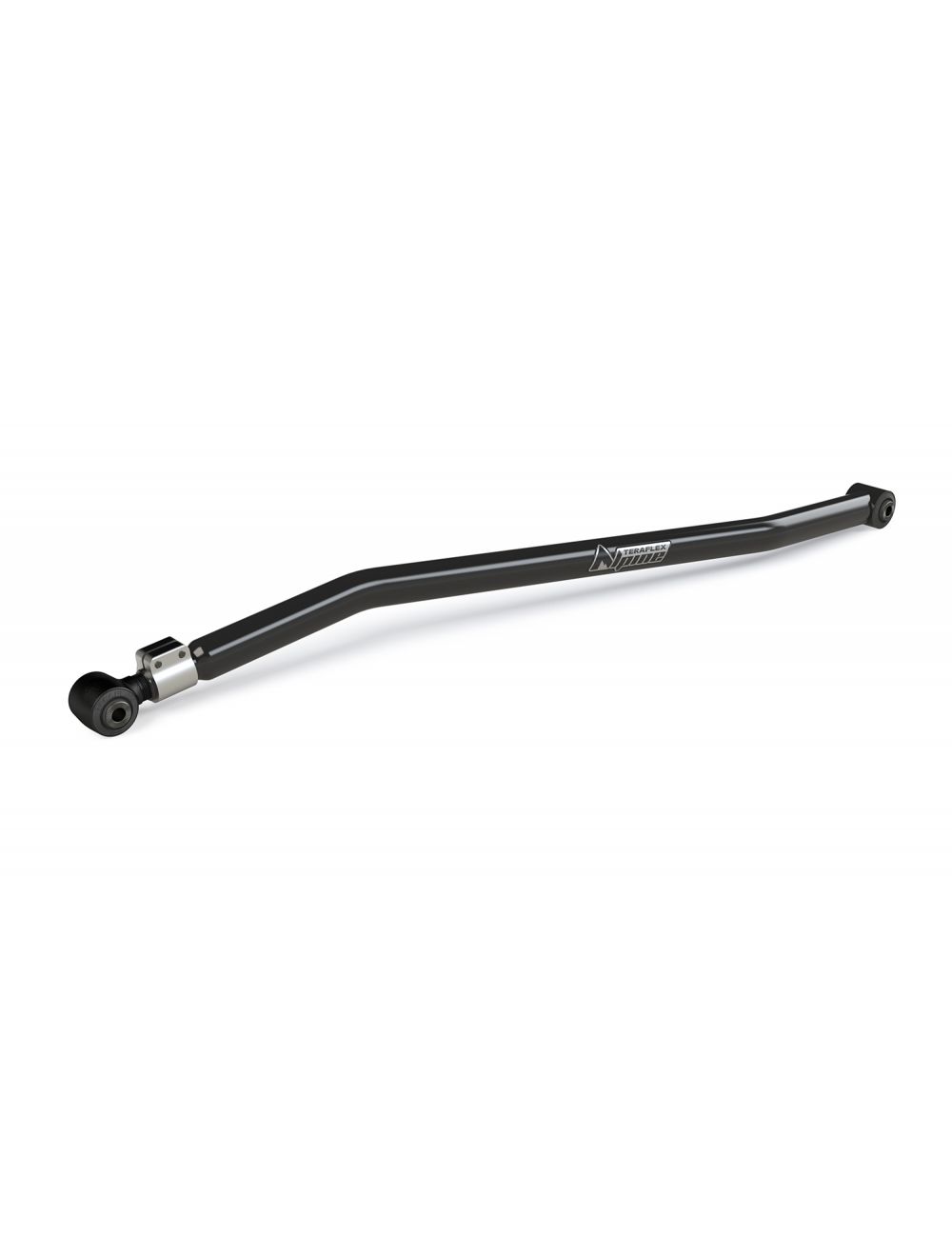

TeraFlex Jeep Gladiator JT Alpine Long Arm, Rear Lower Right, 3-6" Lift

Details:

TeraFlex JT: Alpine Long Arms and Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 3 Inch“6 Inch� lifts. High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality. MUST be used with Long Arm Bracket Kit (JT: # 1968000) Inch” NOT INCLUDED. Can be added to any existing suspension lift.

Features:

Alpine Control Arms (Short / Long):
• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality JL / JT: Long Control Arms (Alpine/IR) and Long Arm Brackets:
• Adjustable Long Control Arms and Long Arm Brackets (NOT INCLUDED) balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3 Inch“6 Inch� lift kits
• Long Control Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• On higher lifts, bolt-on Long Arm Brackets (NOT INCLUDED) reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop and shock load transferred through the Long Control Arms
• Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
• Long Arm Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance
• Front Long Arm Suspension Crossmember (NOT INCLUDED) provides additional strength
• Install and drive simple bolt-on installation Inch” no welding required Adjustable Control Arms (all):
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Fitment:

Vehicle(s):
• JT Gladiator (pickup) Specs:
• Lift Height: 3 Inch“6 Inch� Control Arm Specs:
• Tube Diameter & Wall: 50mm x 5mm
• Factory Length: 23-3/4 Inch�
• Min. Length: 47-3/4"
• Max. Length: 49"
• Bolt Inch“ Both: 16mm
• Bushing Inch“ Both: 09-01-201-001

Includes:

• Alpine Long Arm Inch“ Rear Lower Right
