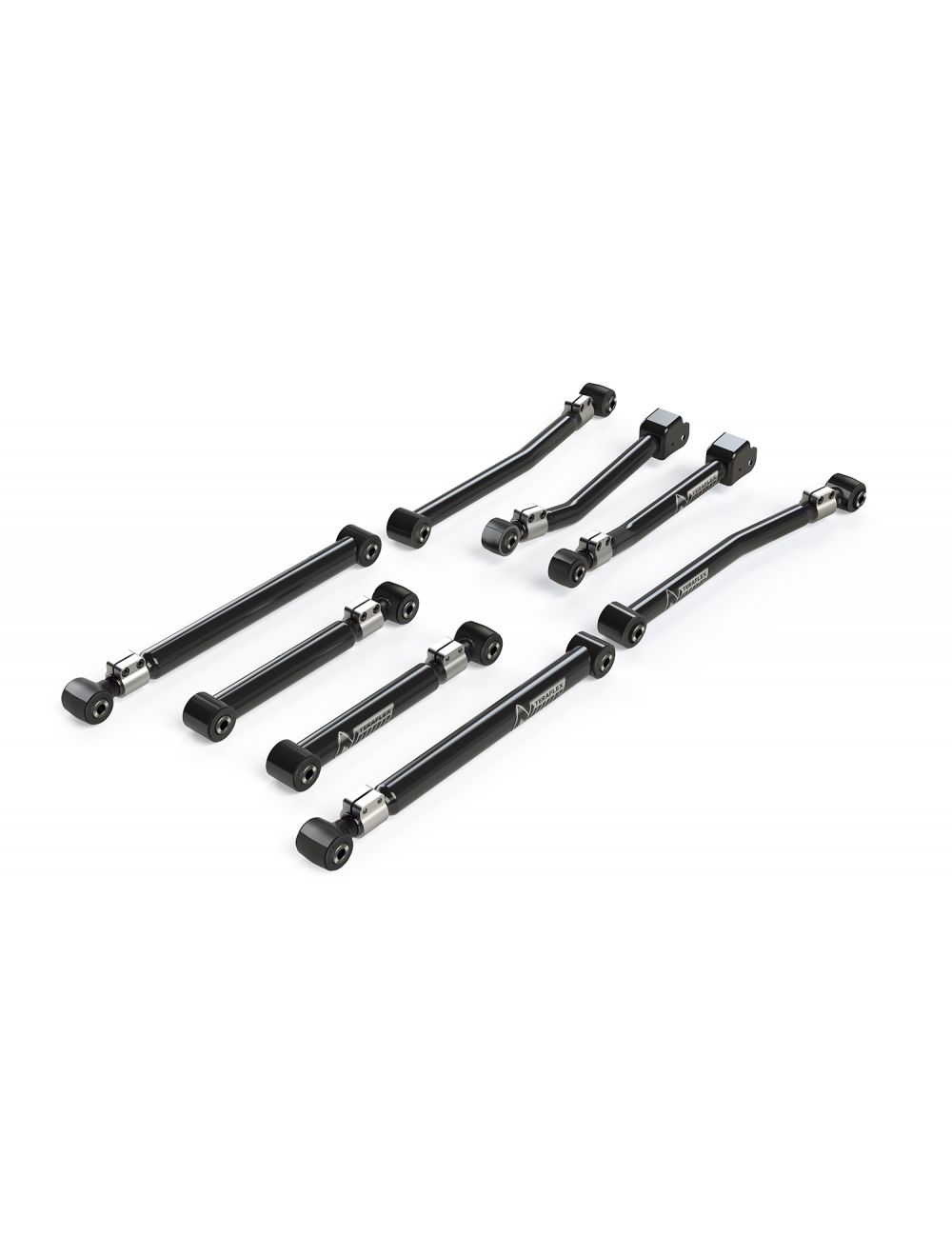

TeraFlex Jeep Gladiator JT Alpine Short Arm Kit, 8-Arm, 0-4.5" Lift

Details:

TeraFlex JT: Alpine Short Arms provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 0 Inch“4.5 Inch� lifts. Bolts to the factory control arm mounting brackets. High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality. Can be added to any existing suspension lift.

Features:

Alpine Control Arms (Short / Long):
• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality JL / JT: Short Control Arms (Alpine/IR):
• Adjustable Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 0 Inch“4.5 Inch� lift kits
• Short Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
• Bolts to the factory control arm mounting brackets
• Install and drive simple bolt-on installation Inch” no welding required Adjustable Control Arms (all):
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Fitment:

Vehicle(s):
• JT Gladiator (pickup) Specs:
• Lift Height: 0 Inch“4.5 Inch� Control Arm Specs: JL / JT: Alpine Short Arm Pair Inch“ Front Upper (# 1416520):
• Tube Diameter & Wall: 42mm x 4mm
• Factory Length: 20.185 Inch�
• Min. Length: 20 Inch�
• Max. Length: 21 Inch�
• Bolt Inch“ Both: 12mm
• Bushing Inch“ Axle: OEM
• Bushing Inch“ Frame: # 611014 JL / JT: Alpine Short Arm Pair Inch“ Front Lower (# 1416500):
• Tube Diameter & Wall: 42mm x 4mm
• Factory Length: 24 Inch�
• Min. Length: 24 Inch�
• Max. Length: 25-1/4 Inch�
• Bolt Inch“ Both: 16mm
• Bushing Inch“ Both: # 09-01-201-001 JT: Alpine Short Arm Kit Inch“ Rear Upper (# 1417530):
• Tube Diameter & Wall: 42mm x 4mm
• Factory Length: 16-3/8 Inch�
• Min. Length: 16-1/8 Inch�
• Max. Length: 17-3/8 Inch�
• Bolt Inch“ Both: 16mm
• Bushing Inch“ Both: # 09-01-201-001 JT: Alpine Short Arm Kit Inch“ Rear Lower (# 1417540):
• Tube Diameter & Wall: 42mm x 4mm
• Factory Length: 23-3/4 Inch�
• Min. Length: 23-1/2 Inch�
• Max. Length: 24-3/4 Inch�
• Bolt Inch“ Both: 16mm
• IR Bushing Inch“ Both: # 09-01-201-001

Includes:

Alpine Short Arm Pairs:
• Arm Pair Inch“ Front Upper (# 1416520)
• Arm Pair Inch“ Front Lower (# 1416500)
• Arm Pair Inch“ Rear Upper (# 1417530)
• Arm Pair Inch“ Rear Lower (# 1417540)
