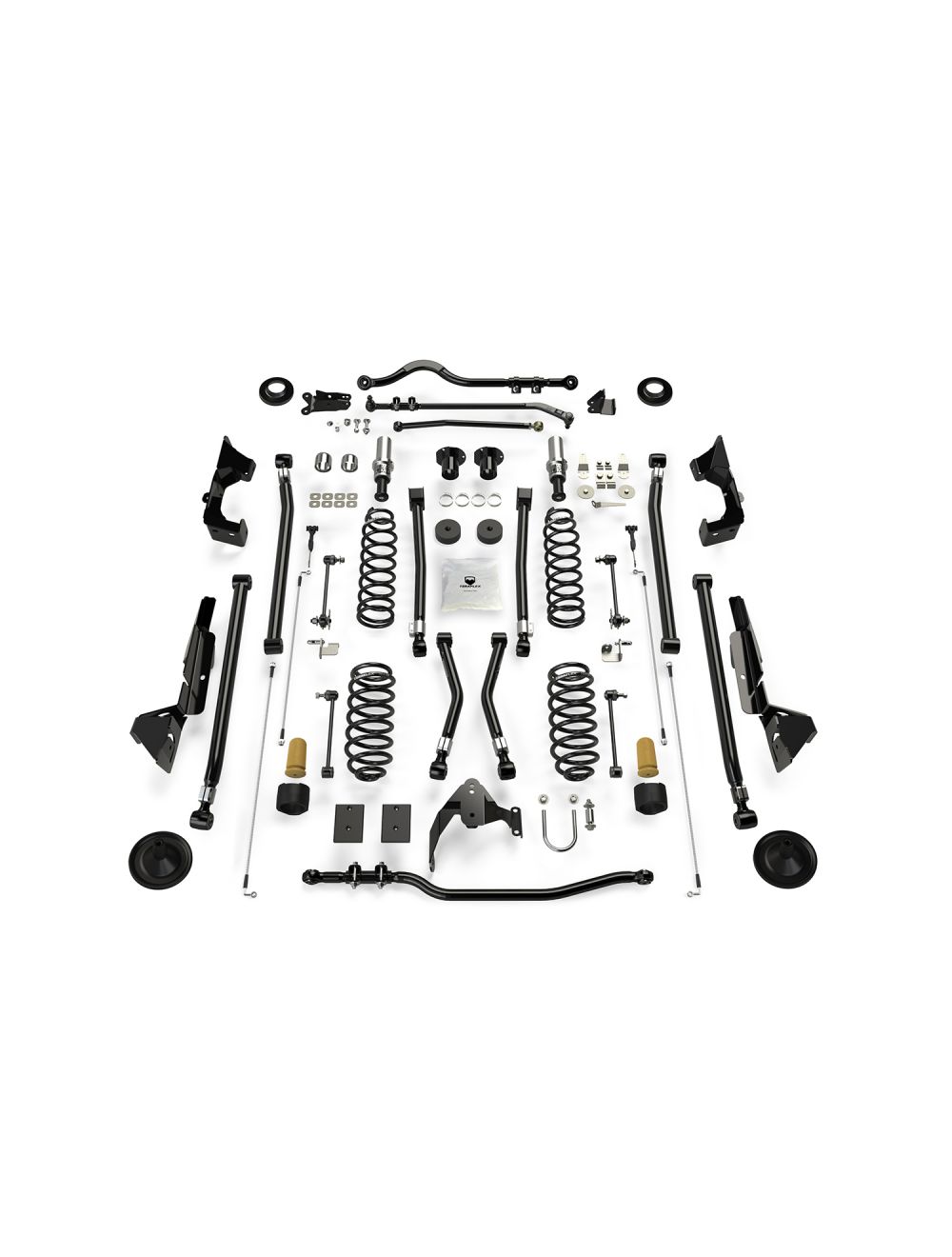

TeraFlex Jeep Wrangler JK 2 Door 6" Alpine RT6 Long Arm Suspension System, No Shocks

Details:

TeraFlex Alpine RT (Rogue Trail) Suspension Systems build on our already capable Alpine CT (Cross-Trail) Suspension Systems. These systems include all our top-of-the-line components. The granddaddy of all our kits, the TeraFlex 6 Inch� Alpine RT6 Long Arm Suspension System is engineered to excel on the highway, off-road, through the desert, or rock crawling! If that sounds impossible, just remember it Inch™s a TeraFlex suspension system built on decades of research and development resulting in the ultimate suspension with a lifetime warranty. The Alpine RT6 includes our HD Drag Link Flip Kit w/ Front Track Bar Drop Bracket & Frame Brace Kit to correct steering geometry, eliminate front end shimmy, and reinforce the frame. The Alpine RT6 is the pinnacle of JK suspension systems! Adjustable Alpine IR Long Control Arms balance front caster and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 3-6 Inch� lifts. On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the long control arms. Alpine IR Control Arms feature our all-new Independent Rotation (IR) Bushings. These innovative bushings remove bushing bind during full suspension travel for less overall bushing load during articulation resulting in unrestricted droop as well as a noticeable ride improvement whether on the highway or the trail. HD Forged Adjustable Track Bar(s) and Rear Track Bar Axle Bracket improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling. This results in improved suspension geometry for superior ride quality and performance regardless of terrain. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH). Alpine RT Suspension Systems are for the Jeeper who wants it all!

Features:

Alpine RT6:
• Lift Height: 6 Inch�
• Max Tire Diameter: 38 Inch�
• HD Drag Link Flip Kit w/ Front Track Bar Drop Bracket & Frame Brace Kit corrects steering geometry, eliminates front end shimmy, and reinforces the frame RT Long Arm Suspension Systems:
• Adjustable Alpine IR Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6 Inch� lift kits
• Alpine IR Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength
• On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop as well as shock load transferred through the Alpine IR Long Control Arms
• Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits Rogue Trail:
• Delivers true Rogue Trail (RT) performance
• Dependable performance w/ zero worries
• Positive, responsive handling w/ reduced NVH
• Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
• Maintenance-free IR Bushings improve on- and off-road ride quality and performance
• HD Forged Adjustable Track Bar(s) and Rear Track Bar Axle Bracket improve steering response, center axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling
• Front SpeedBump and Rear Progressive Bump Stops provide progressive compression during high-speed suspension movement
• Features Front Sway Bar Quick Disconnects
• Coil Spring Retainers prevent the springs from unseating during full suspension travel
• Full range of movement for off-road flex and articulation
• TeraFlex Limited Lifetime Warranty against defects
• (See INCLUDES for included components)

Fitment:

Fits:
• JK Wrangler (2-Door) Specs:
• Lift Height: 6 Inch�
• Max Tire Diameter: 38 Inch�

Includes:

• 6 Inch� Lift Coil Spring Kits (JK2 Front: # 1853402 & JK2 Rear: # 1854402)
• 0.5" Lift Coil Spring Spacers (Front x 2: 1953100 & Rear x 2: # 1954105)
• Alpine IR Long Control Arm & Bracket Kit Inch“ 8-Arm (3-6 Inch� Lift) (# 1315011)
• HD Forged Adjustable Track Bar Inch“ Front (0-6 Inch� Lift) (# 1753418)
• HD Forged Adjustable Track Bar Inch“ Rear (0-6 Inch� Lift) (# 1754418)
• HD Drag Link Flip Kit w/ Front Track Bar Drop Bracket & Frame Brace Kit (# 1600450)
• Front Track Bar Bracket Gusset (# 4951800)
• Rear Track Bar Axle Bracket Kit (3-6 Inch� Lift) (# 1954777)
• Speedbump & Progressive Bump Stop Kit Inch“ Front & Rear (# 1958250)
• 1.25 Inch� SpeedBump Bump Stop Strike Pad Kit Inch“ Front Lower (# 1467125)
• 0.75 Inch� SpeedBump Bump Stop Strike Pad Kit Inch“ Rear Lower (# 1954600)
• 12.25 Inch� Front Sway Bar Quick Disconnect Kit (6 Inch� Lift) (# 1756000)
• 14.75 Inch� Rear Sway Bar Link Kit (6 Inch� Lift) (# 1754410)
• 26 Inch� Stainless-Steel Braided Brake Line Kit Inch“ Front (# 4353310)
• 30 Inch� Stainless-Steel Braided Brake Line Kit Inch“ Rear (# 4350310)
• Front Brake Line Anchor Kit (# 1101355)
• Exhaust Spacer Kit (# 2610000)
• All necessary hardware
• And more
