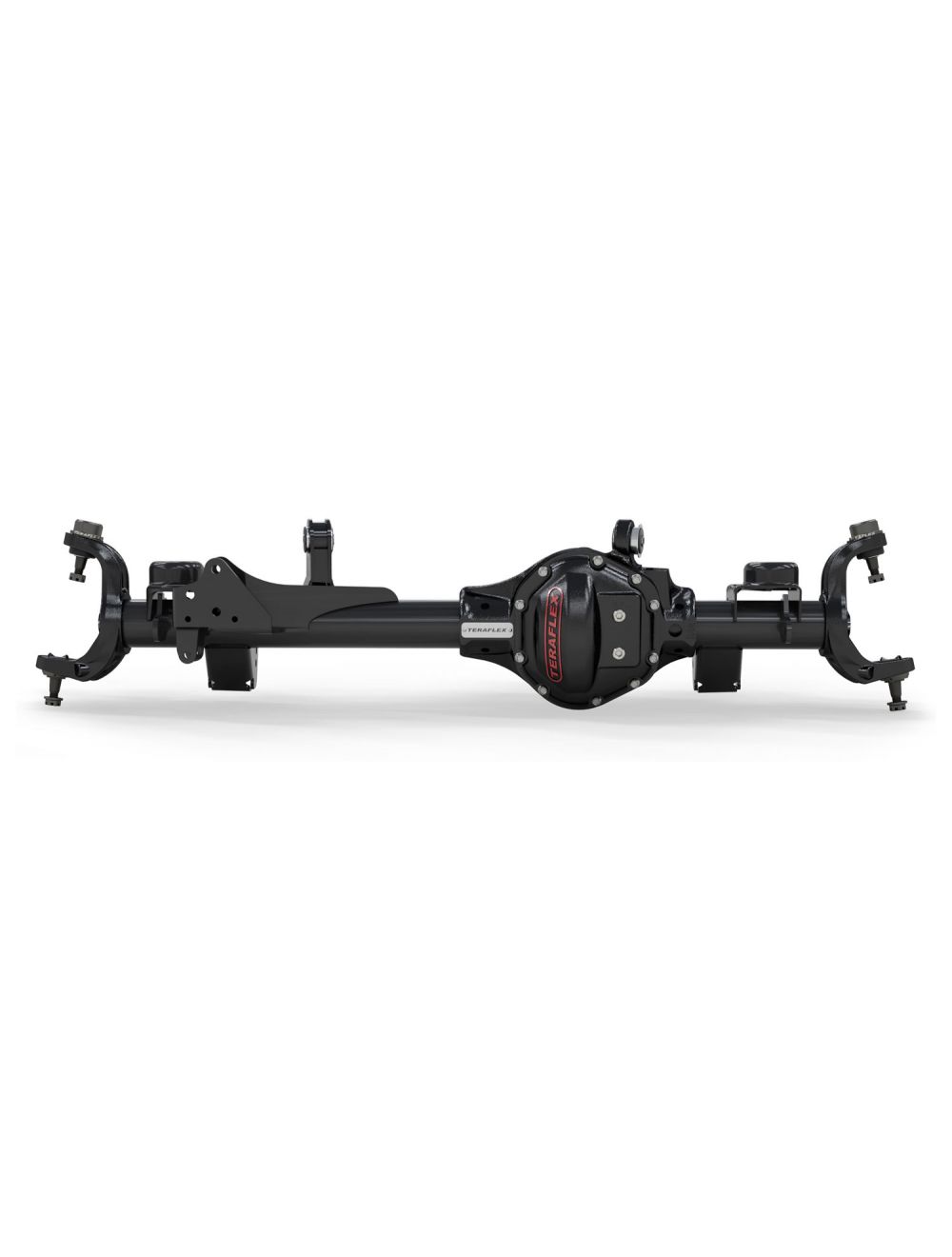

TeraFlex Jeep Wrangler JK 65.5" Tera44 Rubicon HD Front Axle With 5.13 R&P & OEM Locker, 4-6" Lift

Details:

TeraFlex HD Front Axle Housings are perfect for replacing bent, broken, or damaged axles in JK Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle Inch™s weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes, bracketry, and forged inner knuckles as well as pre-installed inner axle seals and upper control arm bushings. Stepping up to our Tera44 Rubicon HD Front Axle Housing w/ Ring & Pinion & OEM Rubicon Locker includes an OEM Rubicon electronic locker, a choice of pre-installed ring & pinion gears, and TeraFlex HD Ball Joints. Transfer your existing inner axle shafts and outer components (stub shafts, unit bearings, knuckle assembly, brakes, sensors) to the new housing!

Features:

JK: 65.5 Inch� Tera44 Rubicon HD Front Axle Assembly w/ R&P & OEM Locker:
• 65.5 Inch� wheel mounting surface to wheel mounting surface
• 3.25 Inch� O.D. x 0.5 Inch� wall extreme duty axle tube increases torsional strength to resist bending
• 5x5 Inch� wheel bolt pattern
• Includes 30-spline OEM Rubicon electronic locker JK: HD Front Axle Assembly:
• Asymmetric housing design for extra-long tube side strength
• Pre-installed inner axle seals
• Ductile cast iron housing w/ increased rib gussets
• HD ductile iron differential cover w/ increased cover mounting area
• Smooth radius bottom design to glide over rocks and obstacles
• HD forged inner knuckles w/ greater upper and lower section strength
• Integrated lower control arm skid plates
• High-flow oil passages and bottom oil drain hole for simple fluid changes
• Reinforced front track bar mount (ties into spring pad) for greater strength
• UV protected triple-stage powder coat for corrosion resistance
• 1/4 Inch�-thick CNC laser cut axle brackets for extreme strength
• Integrated factory location upper control arm mount
• Pre-installed upper control arm bushings
• Proper pinion angle and raised track bar bracket for lifted applications
• Pre-drilled holes on spring perches for bump stop extension bolts
• Pre-drilled holes for limit straps and lower spring retainers
• Retains all JK ESP, ABS, and speedometer sensor capability
• 100% engineered, designed, and built in the USA w/ new components
• 1-Year/Unlimited Mileage Warranty

Fitment:

Vehicle(s):
• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door) Specs:
• Lift Height: 4 Inch“6 Inch�
• WMS-WMS: 65.5 Inch�
• Axle Tube: 3.25 Inch� O.D. x 0.5 Inch� wall
• Axle Splines: 30
• Wheel Bolt Pattern: 5x5 Inch�
• Gear Ratio: 5.13

Includes:

• 30-spline OEM Rubicon electronic locker
• Spicer ring & pinion
• Spicer bearings and install kits
• TeraFlex HD Ball Joints
• Factory yoke
• CALL CUSTOMER SERVICE FOR OPTIONS
