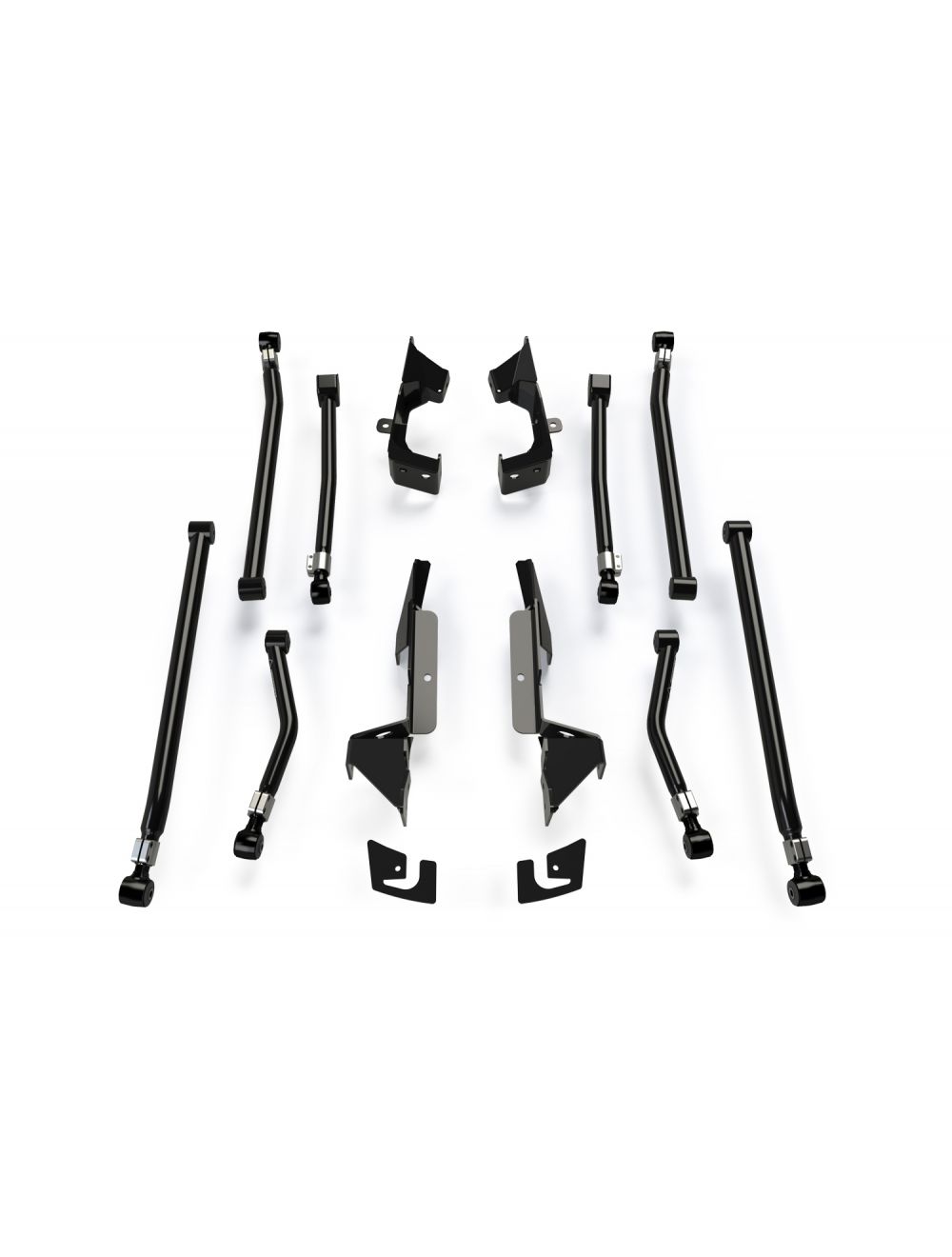

TeraFlex Jeep Wrangler JK Alpine Long Arm & Bracket Kit, 8-Arm, 3-6" Lift

Details:

TeraFlex JK: Alpine Long Arms and Long Arm Brackets) provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3 Inch“6 Inch� lifts. High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality. CAD-engineered TeraFlex JK: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Can be added to any existing suspension lift.

Features:

Alpine Control Arms (Short / Long):
• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality JK: Long Control Arms (Alpine/IR) and Long Arm Brackets:
• Adjustable Long Control Arms and Long Arm Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3 Inch“6 Inch� lift kits
• Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength
• On higher lifts, Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop and shock load transferred through the Long Control Arms
• Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
• Long Arm Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance Adjustable Control Arms (all):
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Fitment:

Vehicle(s):
• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door) Specs:
• Lift Height: 3 Inch“6 Inch� Control Arm Specs: JK: Alpine Long Arm Pair Inch“ Front Upper (# 1315520):
• Tube Diameter & Wall: 42mm x 4mm
• Factory Length: 18-3/4 Inch�
• Min. Length: 27-3/8 Inch�
• Max. Length: 28-7/8 Inch�
• Bolt Inch“ Axle: 12mm
• Bolt Inch“ Frame: 14mm
• Bushing Inch“ Axle: OEM
• Bushing Inch“ Frame: 611013 JK: Alpine Long Arm Pair Inch“ Front Lower (# 1315500):
• Tube Diameter & Wall: 50mm x 5mm
• Factory Length: 22-5/8 Inch�
• Min. Length: 33-3/4 Inch�
• Max. Length: 35-1/4 Inch�
• Bolt Inch“ Both: 14mm
• Bushing Inch“ Both: 611011 JK: Alpine Long Arm Pair Inch“ Rear Upper (# 1315560):
• Tube Diameter & Wall: 42mm x 4mm
• Factory Length: 17-7/16 Inch�
• Min. Length: 20 Inch�
• Max. Length: 21-1/2 Inch�
• Bolt Inch“ Both: 14mm
• Bushing Inch“ Both: 611012 JK: Alpine Long Arm Pair Inch“ Rear Lower (# 1315540):
• Tube Diameter & Wall: 50mm x 5mm
• Factory Length: 19-3/4 Inch�
• Min. Length: 35-3/4 Inch�
• Max. Length: 37-1/4 Inch�
• Bolt Inch“ Both: 14mm
• Bushing Inch“ Both: 611011

Includes:

Alpine Long Arm Kit Inch“ 8-Arm (# 1315000):
• Arm Pair Inch“ Front Upper (# 1315520)
• Arm Pair Inch“ Front Lower (# 1315500)
• Arm Pair Inch“ Rear Upper (# 1315560)
• Arm Pair Inch“ Rear Lower (# 1315540) Long Arm Bracket Kit (# 1957000):
• Brackets Inch“ Front
• Brackets Inch“ Rear
• Gussets Inch“ Rear
• All necessary hardware
