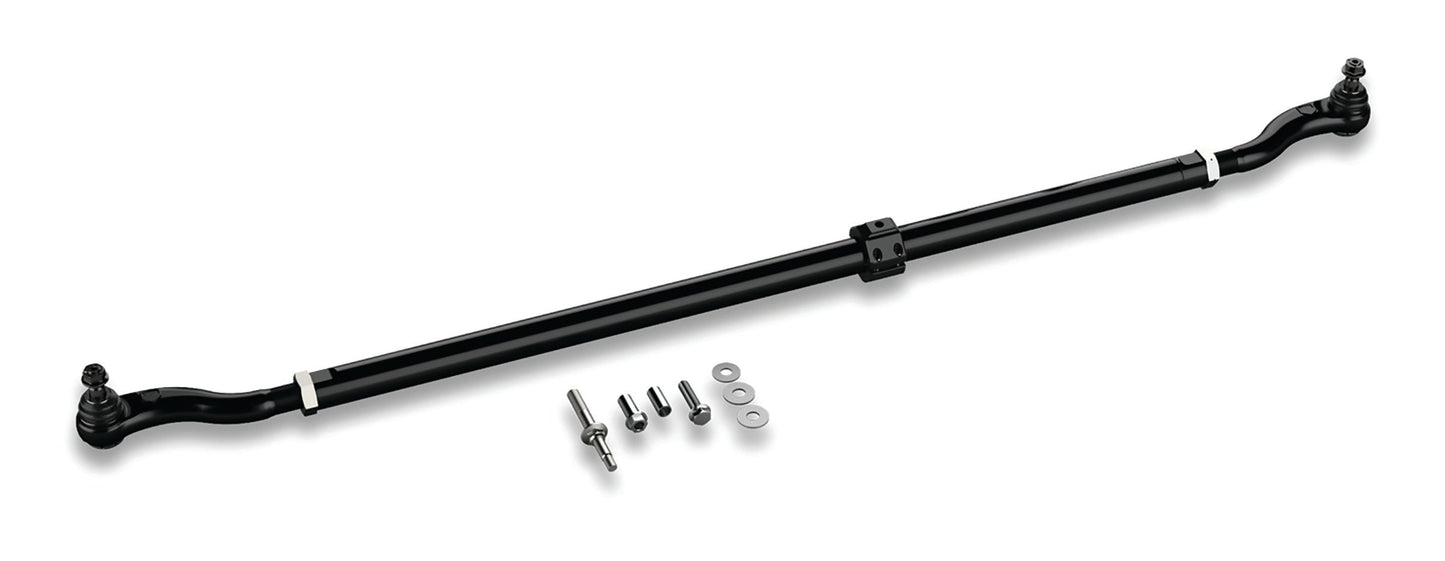

TeraFlex Jeep Wrangler JK HD Chromoly Tie Rod Kit, 0-6" Lift

Details:

The TeraFlex JK: HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models.

Features:

• Installation DOES NOT require any cutting or removal of factory bracketry HD Chromoly Tie Rod Kit (0–6” Lift) (# 1853910):
• HD 1-5/8” O.D. 4140 heat treated Chromoly steel
• More than 200% stronger than factory tie rod
• Forged tie rod housing designed specifically for JK Wrangler/Unlimited
• Tie rod end joint incorporates same features found in TeraFlex HD Ball Joints, including 4140 Chromoly ball/stud and 1045 carbon steel housing
• Features adjustable rod end preload tension to ensure long-term durability
• The joint is pressed into the rod end housing and secured w/ a snap ring
• Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll
• Provides clearance for factory 17” wheels
• Steering Stabilizer Relocation Kit (1-5/8” HD Tie Rod) (# 1123160) Steering Stabilizer Relocation Kit (1-5/8” HD Tie Rod) (# 1123160):
• Fits 1-5/8” O.D. HD Tie Rod
• 6061-T6 aluminum clamp and forged 10.9-grade stud
• Moves steering stabilizer up nearly 2.5” to help reduce damage to the stabilizer shaft or body
• Repositions stabilizer to reduce “tie rod roll” associated w/ stabilizer misalignment

Fitment:

Vehicle(s):
• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door) Axle(s):
• Dana 30 front axle
• Dana 44 front axle Lift Height:
• 0–6” Lift

Includes:

• HD Chromoly Tie Rod w/ pressed-in Joints
• Steering Stabilizer Relocation Kit (1-5/8” HD Tie Rod) (# 1123160)
• HD Ball Joint Adjusting Tool
• All necessary hardware
