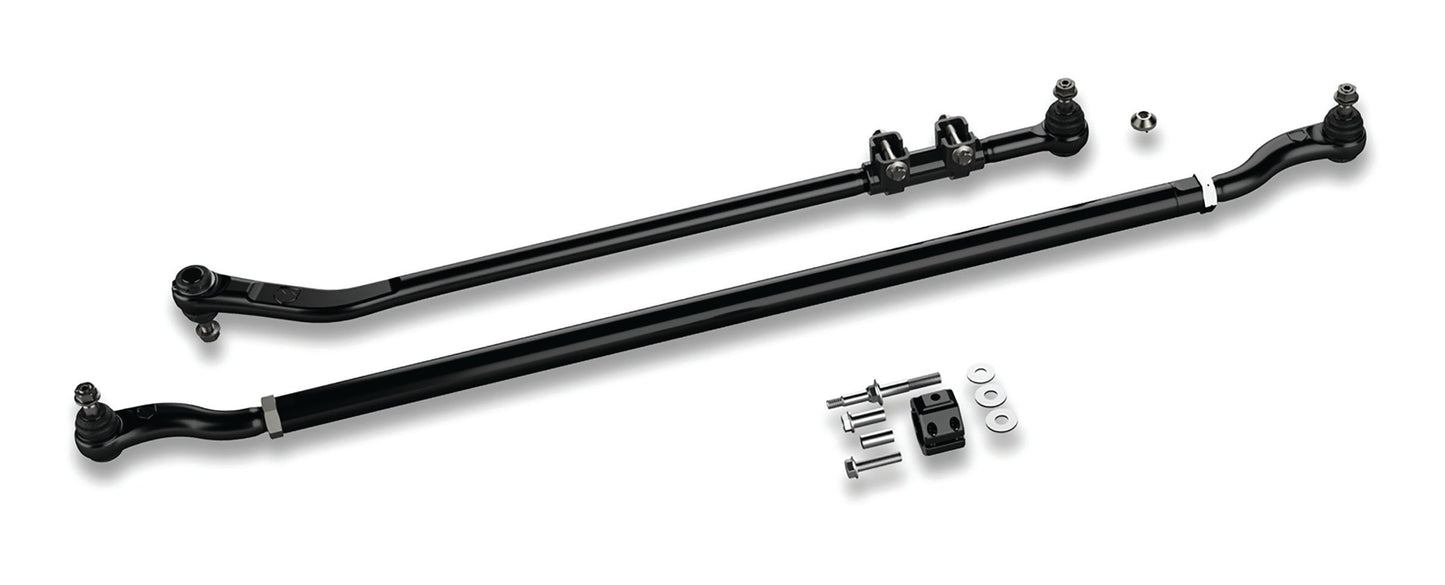

TeraFlex Jeep Wrangler JK HD Chromoly Tie Rod Kit & HD Forged Drag Link Flip Kit, 4-6" Lift

Details:

The TeraFlex JK: HD Chromoly Tie Rod Kit and HD Forged Drag Link Flip Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models. “Flipping” the HD Forged Drag Link (50% stiffer than factory) over the Knuckle helps eliminate front-end shimmy and other alignment issues. The axle end joint is flipped 180 degrees so it can be pressed down into the top of the knuckle.

Features:

HD Chromoly Tie Rod Kit (0–6” Lift) (# 1853910):
• HD 1-5/8” O.D. 4140 heat treated Chromoly steel
• More than 200% stronger than factory tie rod
• Forged tie rod housing designed specifically for JK Wrangler/Unlimited
• Tie rod end joint incorporates same features found in TeraFlex HD Ball Joints, including 4140 Chromoly ball/stud and 1045 carbon steel housing
• Features adjustable rod end preload tension to ensure long-term durability
• The joint is pressed into the rod end housing and secured w/ a snap ring
• Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll
• Provides clearance for factory 17” wheels
• Steering Stabilizer Relocation Kit (1-5/8” HD Tie Rod) (# 1123160) HD Forged Drag Link Flip Kit (4–6” Lift) (# 1853930):
• Relocates drag link over the knuckle to the top of the knuckle’s steering arm (Left-Hand-Drive only)
• Axle end joint is flipped 180 degrees to be pressed down into the top of the knuckle
• Bolts directly to new High Steer Knuckle (NOT INCLUDED)
• 50% stiffer than factory drag link to help eliminate front end shimmy and other alignment issues
• 1.25” O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
• Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments
• Tie rod joint incorporates same features found in TeraFlex HD Ball Joints, including 4140 Chromoly ball/stud and 1045 carbon steel housing
• Adjustable joint preload tension to ensure proper long-term durability
• Joint is pressed into rod end housing and secured w/ snap ring
• Provides clearance for factory 17” wheels Steering Stabilizer Relocation Kit (1-5/8” HD Tie Rod) (# 1123160):
• Fits 1-5/8” O.D. HD Tie Rod
• 6061-T6 aluminum clamp and forged 10.9-grade stud
• Moves steering stabilizer up nearly 2.5” to help reduce damage to the stabilizer shaft or body
• Repositions stabilizer to reduce “tie rod roll” associated w/ stabilizer misalignment

Fitment:

Vehicle(s):
• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door) Axle(s):
• Dana 30 front axle
• Dana 44 front axle Lift Height:
• Left-Hand Drive – Flip: 4–6” Lift
• Right-Hand Drive – No Flip: 0–3” Lift

Includes:

HD Chromoly Tie Rod Kit (0–6” Lift) (# 1853910):
• HD Chromoly Tie Rod w/ pressed-in joints
• Steering Stabilizer Relocation Kit (1-5/8” HD Tie Rod) (# 1123160)
• HD Ball Joint Adjusting Tool
• All necessary hardware HD Forged Drag Link Flip Kit (4–6” Lift) (# 1853930):
• HD Forged Drag Link w/ “flipped” pressed-in Joints
