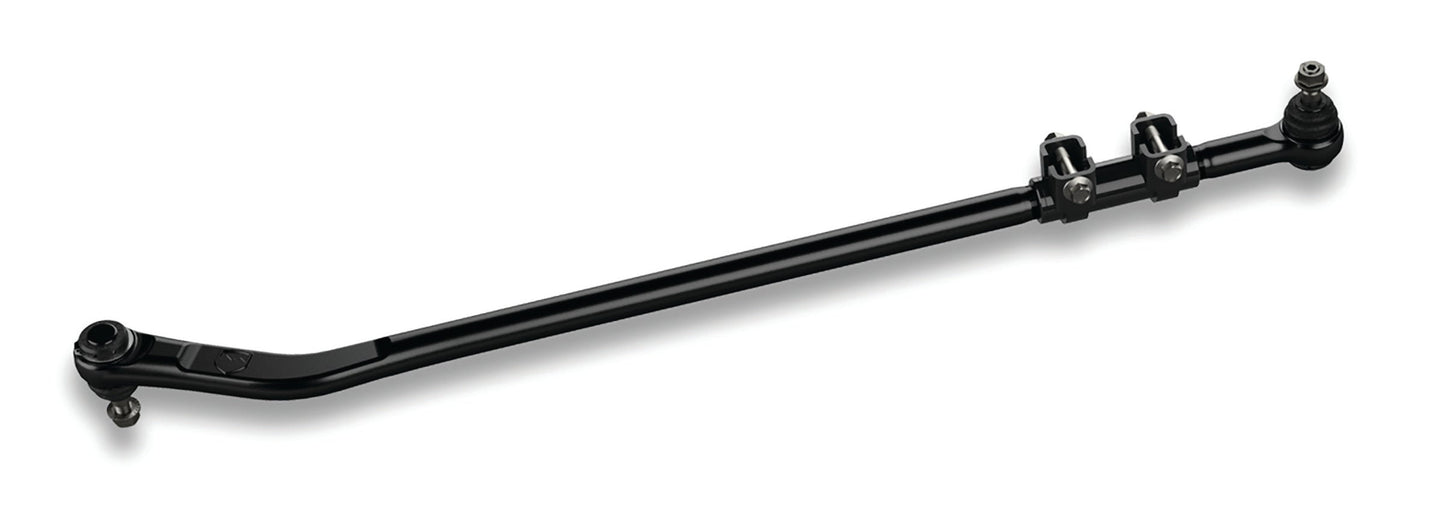

TeraFlex Jeep Wrangler JK HD Forged Drag Link Flip Kit, 4-6" Lift

Details:

The TeraFlex JK: HD Forged Drag Link Flip Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models. “Flipping” the HD Forged Drag Link (50% stiffer than factory) over the Knuckle helps eliminate front-end shimmy and other alignment issues. The axle end joint is flipped 180 degrees so it can be pressed down into the top of the knuckle.

Features:

• Relocates drag link over the knuckle to the top of the knuckle’s steering arm (Left-Hand-Drive only)
• Axle end joint is flipped 180 degrees to be pressed down into the top of the knuckle
• Bolts directly to new High Steer Knuckle (NOT INCLUDED)
• 50% stiffer than factory drag link to help eliminate front end shimmy and other alignment issues
• 1.25” O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
• Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments
• Tie rod joint incorporates same features found in TeraFlex HD Ball Joints, including 4140 Chromoly ball/stud and 1045 carbon steel housing
• Adjustable joint preload tension to ensure proper long-term durability
• Joint is pressed into rod end housing and secured w/ snap ring
• Provides clearance for factory 17” wheels

Fitment:

Vehicle(s):
• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door) Axle(s):
• Dana 30 front axle
• Dana 44 front axle Lift Height:
• Left-Hand Drive – Flip: 4–6” Lift
• Right-Hand Drive – No Flip: 0–3” Lift

Includes:

• HD Forged Drag Link w/ “flipped” pressed-in Joints
