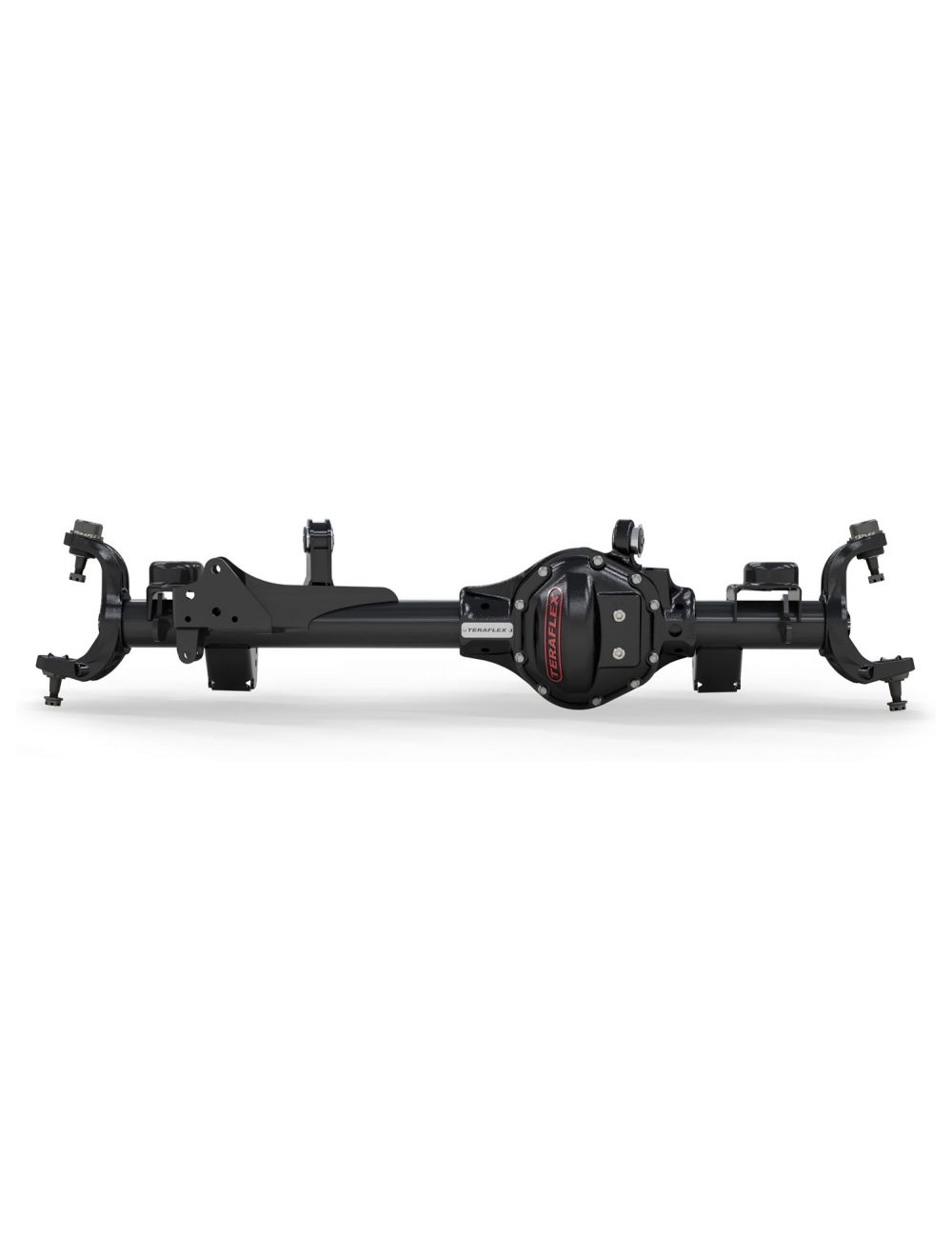

TeraFlex Jeep Wrangler JK Tera44 HD Front Axle Housing With 5.13 R&P & ARB Locker, 4-6" Lift

Details:

TeraFlex HD Front Axle Housings are perfect for replacing bent, broken, or damaged axles in JK Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles Inch™ weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes, bracketry, and forged inner knuckles as well as pre-installed inner seals and upper control arm bushings. Stepping up to our Tera44 HD Front Axle Housing w/ Ring & Pinion & ARB Locker provides a choice of pre-installed ring and pinon gears, ARB air locker, and TeraFlex HD Ball Joints. Transfer your outer stub shafts, outer knuckles, and outer axle assembly (unit bearings, brakes, sensors) to make a complete axle assembly. Requires new inner axle shafts.

Features:

• 3.25 O.D. x 0.5 Inch� wall extreme duty axle tube increases torsional strength to resist bending
• Asymmetric housing design for extra-long tube side strength
• Pre-installed inner axle seals
• HD forged inner knuckles w/ greater upper and lower section strength
• Ductile cast iron housing w/ increased rib gussets
• HD ductile iron differential cover
• Smooth radius bottom design to glide over rocks and obstacles
• Integrated lower control arm skid plates
• High-flow oil passages and bottom oil drain hole for simple fluid changes
• Reinforced front track bar mount (ties into spring pad) for greater strength
• UV protected triple-stage powder coat for corrosion resistance
• 1/4 Inch�-thick CNC laser cut axle brackets for extreme strength
• Integrated factory location upper control arm mount
• Pre-installed upper control arm bushings
• Proper pinion angle for lifted JK applications
• 4-6 Inch� Lift features a raised pinion angle and raised track bar bracket (where applicable)
• Pre-tapped hole on spring perch for bump stop extensions
• Pre-drilled holes for limit straps and lower spring retainers
• Retains all JK ESP, ABS, and speedometer sensor capability
• 100% engineered, designed, and built in the USA w/ new components
• 1-Year/Unlimited Mileage Warranty

Fitment:

• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)

Includes:

• ARB Air Locker
• Spicer ring & pinion
• Spicer bearings and install kits
• TeraFlex HD ball joints
• Factory yoke
• CALL CUSTOMER SERVICE FOR OPTIONS
