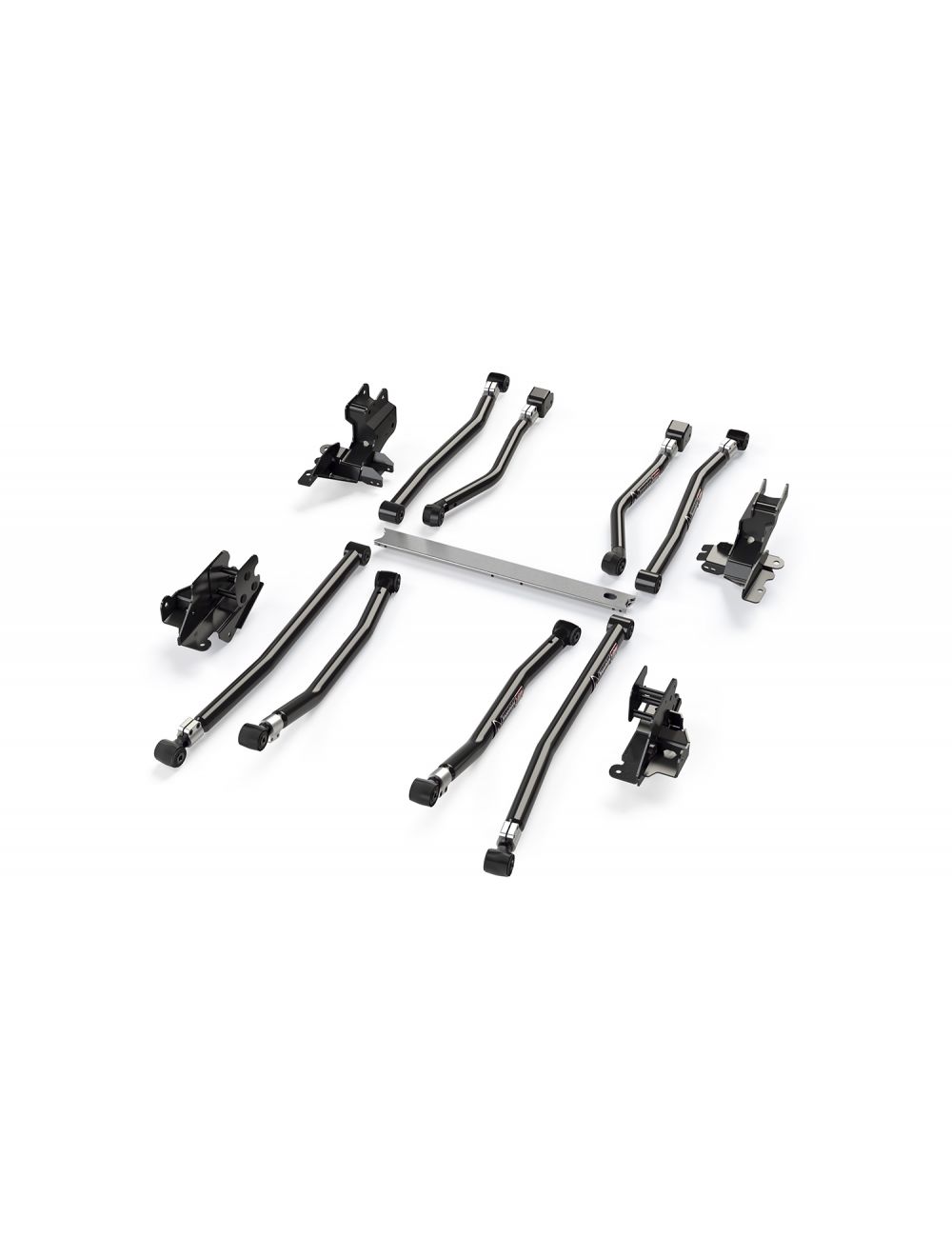

TeraFlex Jeep Wrangler JL 4 Door Alpine IR Long Arm & Bracket Kit, 8-Arm, 3-6" Lift

Details:

TeraFlex JL: Alpine IR Long Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3 Inch“6 Inch� lifts. Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance. CAD-engineered TeraFlex JL: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Front Long Arm Suspension Crossmember provides additional strength. Can be added to any existing suspension lift.

Features:

Alpine IR Control Arms (Short / Long):
• Innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance JL / JT: Long Control Arms (Alpine/IR) and Long Arm Brackets:
• Adjustable Long Control Arms and Long Arm Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3 Inch“6 Inch� lift kits
• Long Control Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• On higher lifts, bolt-on Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop and shock load transferred through the Long Control Arms
• Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
• Long Arm Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance
• Front Long Arm Suspension Crossmember provides additional strength
• Install and drive simple bolt-on installation Inch” no welding required Adjustable Control Arms (all):
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Fitment:

Vehicle(s):
• JL Wrangler Unlimited (4-door) Specs:
• Lift Height: 3 Inch“6 Inch�
• Does NOT fit 4-door JL Wrangler Unlimited 4xe hybrid models Control Arm Specs: JL / JT: Alpine IR Long Arm Pair Inch“ Front Upper (# 1310520):
• Tube Diameter & Wall: 42mm x 4mm
• Factory Length: 20-1/4 Inch�
• Min. Length: 27-3/4 Inch�
• Max. Length: 28-7/8 Inch�
• Bolt Inch“ Axle: 12mm
• Bolt Inch“ Frame: 14mm
• IR Bushing Inch“ Axle: 611018
• IR Bushing Inch“ Frame: 611016 JL / JT: Alpine IR Long Arm Pair Inch“ Front Lower (# 1310500):
• Tube Diameter & Wall: 50mm x 5mm
• Factory Length: 24 Inch�
• Min. Length: 30-7/8 Inch�
• Max. Length: 32 Inch�
• Bolt Inch“ Both: 16mm
• IR Bushing Inch“ Both: 611020 JL: Alpine IR Long Arm Pair Inch“ Rear Upper (# 1310560):
• Tube Diameter & Wall: 50mm x 5mm
• Factory Length: 17-3/8 Inch�
• Min. Length: 32-3/4 Inch�
• Max. Length: 33-3/4 Inch�
• Bolt Inch“ Both: 14mm
• IR Bushing Inch“ Axle: 611015
• IR Bushing Inch“ Frame: 611016 JL: Alpine IR Long Arm Pair Inch“ Rear Lower (# 1310540):
• Tube Diameter & Wall: 50mm x 5mm
• Factory Length: 19-3/4 Inch�
• Min. Length: 36-1/4 Inch�
• Max. Length: 37-3/8 Inch�
• Bolt Inch“ Both: 14mm
• IR Bushing Inch“ Both: 611015

Includes:

Alpine IR Long Arm Kit Inch“ 8-Arm (# 1310505):
• Arm Pair Inch“ Front Upper (# 1310520)
• Arm Pair Inch“ Front Lower (# 1310500)
• Arm Pair Inch“ Rear Upper (# 1310560)
• Arm Pair Inch“ Rear Lower (# 1310540) Long Arm Bracket Kit (# 1958000):
• Brackets Inch“ Front
• Brackets Inch“ Rear
• Suspension Crossmember Inch“ Front
• All necessary hardware
