TeraFlex Jeep Wrangler LJ LWB 5" Pro LCG Long Arm Suspension System, No Shocks

Details:

TeraFlex LCG (Low Center-of-Gravity) Long Arm Suspension Systems are engineered for hardcore Jeepers who don’t want to give up on-road comfort and control in their TJ Wrangler/Unlimited. These complete systems include all necessary components including LCG Long Arm Brackets. For ultimate rock crawling, trail riding, and high-speed road stability, look no further than the TeraFlex Pro LCG Long Arm Suspension System. These kits are engineered for the aggressive off-road enthusiast who wants the best suspension performance on and off road. Up front, the Pro LCG expands the performance of the stock 5-link suspension configuration with our adjustable LCG Long Control Arms & Brackets. Our Front Upper LCG Long Control Arms are more than 9” longer than stock! Around back, the stock 5-link rear suspension and track bar are replaced by our adjustable Pro LCG Triangulated 4-Link Long Control Arm Suspension w/ Rear Axle Truss & Brackets. The rear upper brackets feature adjustable anti-squat tunability to fine tune the suspension. Our adjustable LCG Long Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 3-5” lifts. On higher lifts, LCG Long Arm Brackets and 4-Link Rear Axle Truss reposition the frame-end control arm mounting points to relax suspension link angles. This reduces bushing stress during extreme droop as well as shock load transferred through the LCG Long Control Arms.

Features:

5” Pro LCG:
• 5” Lift = 37” Tire
• Maximum off-road articulation combined w/ increased on-road comfort and stability
• Adjustable anti-squat tunability to fine tune the suspension
• Complete front and rear adjustable LCG Long Control Arm system
• Rear triangulated 4-link suspension eliminates rear track bar
• Adjustable LCG Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-5” lift kits
• On higher lifts, LCG Long Arm Brackets and 4-Link Rear Axle Truss reposition the frame-end control arm mounting points to relax suspension link angles, which reduces bushing stress during extreme droop and shock load transferred through the LCG Long Control Arms
• LCG Long Arm Brackets are gusseted and reinforced for superior strength w/ reduce NVH compared to other long arm kits
• (High Steer) HD Adjustable Front Track Bar, Drop Pitman Arm, and Rear Upper Pro LCG Triangulated 4-Link Control Arms improve steering response, center the axles to optimize vehicle roll center, and reduce body roll to for unsurpassed handling
• Pro LCG High Steer System optional on 5” lift (# 1849000 – See Page 117) LCG Long Control Arm Suspension Systems:
• Maximum ground clearance w/ a Low Center-of-Gravity (LCG)
• Dependable performance w/ zero worries
• Positive, responsive handling w/ reduced NVH
• Easy-to-install Lower LCG Long Arm Brackets don’t hinder transfer case access
• Full range of movement for off-road flex and articulation
• Fits all OEM axles including Dana 30, 35, 44, and Rubicon 44 (call for other axles)
• TeraFlex Limited Lifetime Warranty against defects

Fitment:

• LJ Wrangler Unlimited (long wheelbase)

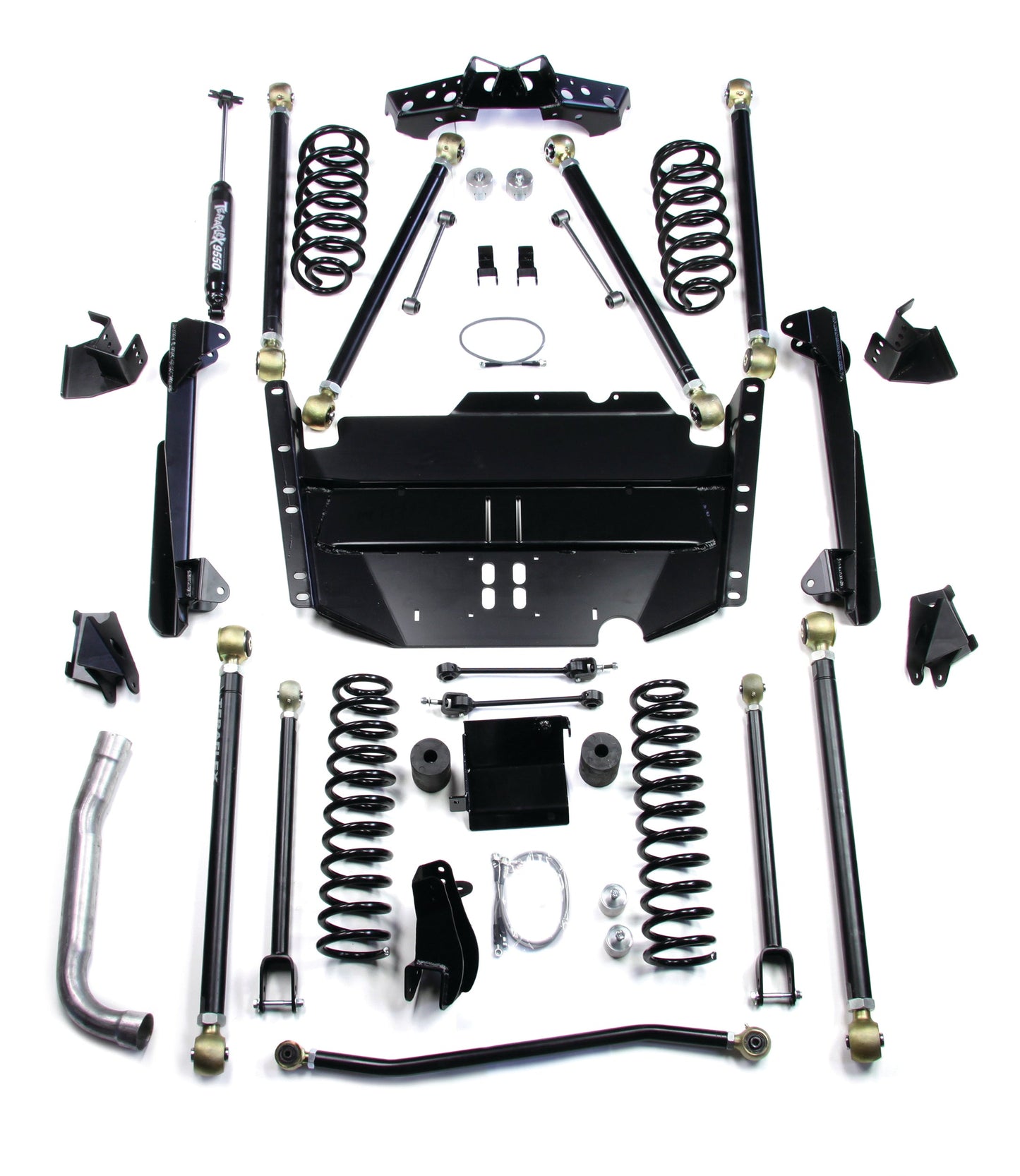

Includes:

• 5” Lift Coil Springs (Front: # 1843502 & Rear: # 1844502)
• Pro LCG Long Control Arm & Bracket Kit – Front Upper (3-5” Lift) (# 1443470)
• LCG Long Control Arm & Bracket Kit – Lower (3-5” Lift) (# 1447780)
• Pro LCG 4-Link Long Control Arm & Bracket Kit – Rear Upper (3-5” Lift) (# 1444880)
• HD Adjustable Front Track Bar (3.5-6” Lift) (# 1743070)
• High Steer Front Track Bar Frame Bracket Kit (# 1743031)
• Drop Pitman Arm (3.5-6” Lift) (# 4922133)
• 2.25” Front Upper Bump Stop Extension Kit (LCG Lift) (# 1910204)
• 1.75” Rear Lower Bump Stop Extension Kit (LCG Lift) (# 1949011)
• 10” Front Sway Bar Quick Disconnect Kit (3-6” Lift) (# 1743090)
• 10.5” Rear Sway Bar Link Kit (2.5-5” Lift) (# 1944011)
• BellyUp Skid Plate Kit (# 4648403)
• HD Steering Box Skid Plate Kit (# 4627400)
• 2003-2006 TJ: 1” Transfer Case Lowering Spacer Kit (# 1900103)
• 1997-2002 TJ: Shift Linkage Plate Kit (# 1900001)
• 2003-2006 TJ: Shift Linkage Plate Kit (# 1900003)
• 26” Stainless-Steel Braided Brake Line Kit (Front, Rear) (# 4350400)
• Exhaust Pipe Extension
• Rear Lower Shock Extension Kit (# 1544790)
• All necessary hardware
• And more
