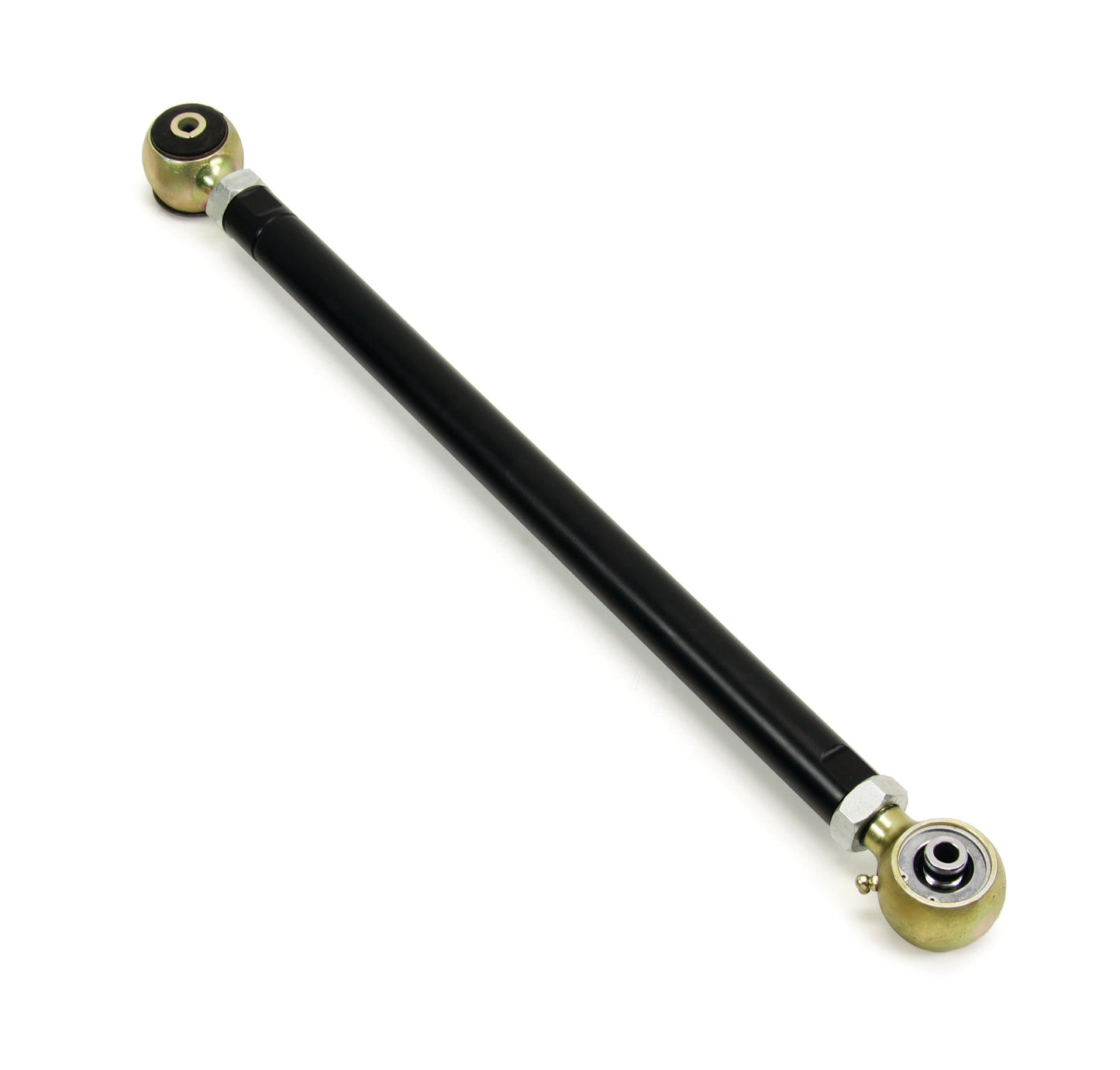

TeraFlex Jeep Wrangler TJ LCG Long Arm, Lower,, Front or SWB Rear, 3-5" Lift

Details:

TeraFlex TJ: Lower LCG Long Arms and Lower LCG Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on TJ Wrangler/Unlimited models with 3–5” lifts. Rebuildable joints for easy maintenance. INCLUDES one Lower LCG Long Arm. TJ SWB models REQUIRE two pair. LJ LWB models REQUIRE Rear Lower LCG Long Arm Pair (# 1447704 — NOT INCLUDED. MUST be used with Lower LCG Long Arm Frame Bracket Kit (# 1447701 — NOT INCLUDED). Can be added to an existing suspension lift.

Features:

TJ: LCG Long Arms and LCG Long Arm Frame Brackets and Pro LCG 4-Link Long Arm Axle Truss:
• Adjustable (Pro) LCG (4-Link) Long Arms and (Pro) LCG (4-Link) Long Arm Brackets and Rear Upper Pro LCG 4-Link Long Arm Axle Truss balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–5” lift kits
• LCG Long Arms are constructed from durable 1.25” x 0.25” (front upper) or 1.75” x 0.25” (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• On higher lifts, LCG Long Arm Frame Brackets (NOT INCLUDED) and triangulated Pro LCG 4-Link Long Arm Axle Truss (NOT INCLUDED) reposition the frame-end control arm mounting points to relax suspension link angles, which reduces bushing stress during extreme droop and shock load transferred through the LCG Long Arms
• LCG Long Arm Frame Brackets (NOT INCLUDED) and triangulated Pro LCG 4-Link Long Arm Axle Truss (NOT INCLUDED) are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
• Triangulated Rear Upper Pro LCG 4-Link Long Arm Frame Brackets (NOT INCLUDED) and Rear Upper Pro LCG 4-Link Long Arm Axle Truss (NOT INCLUDED) converts the stock rear 5-link suspension to a triangulated rear 4-link suspension for increased flex while eliminating interference w/ other components TJ: Adjustable Control Arms (Short / Long):
• Rebuildable joints for easy maintenance
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• TeraFlex Lifetime Warranty against defects

Fitment:

Vehicle(s):
• TJ Wrangler (short wheelbase) – Front or Rear / Left or Right
• LJ Wrangler Unlimited (long wheelbase) – Front only / Left or Right Specs:
• Lift Height: 3–5” Control Arm Specs: TJ: LCG Long Arm – Lower (Front or SWB Rear) (# 1978226):
• Tube Diameter & Wall: 1.75” x 0.25”
• Factory Length: 15-3/4”
• Min. Length: 31-9/16”
• Max. Length: 36-3/16”
• Bolt – Both: 9/16" (14mm)
• Joint – Axle: 4116260
• Joint – Frame: 4520011

Includes:

• LCG Long Arm – Lower (Front or SWB Rear / Left or Right)
