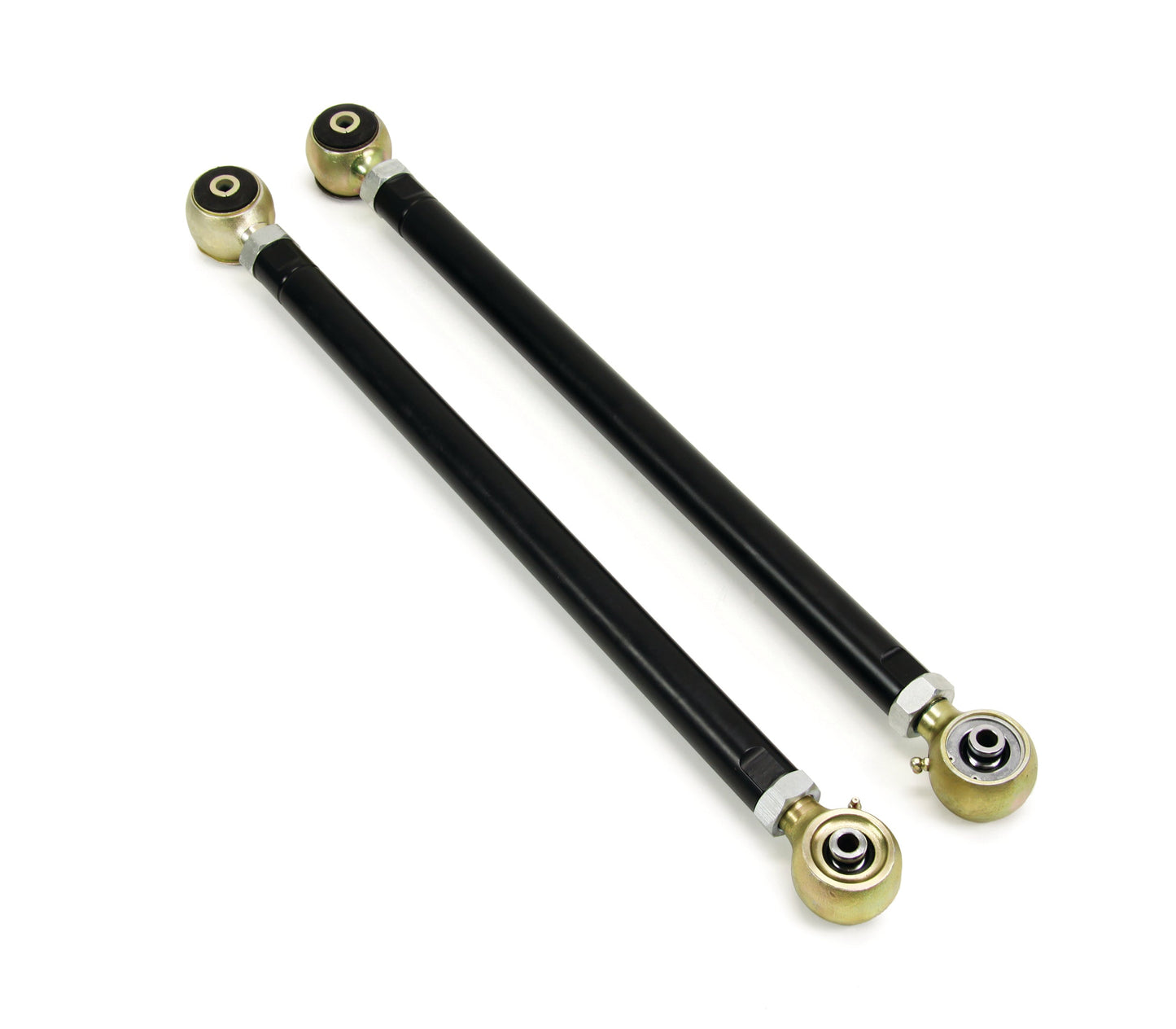

TeraFlex Jeep Wrangler TJ LCG Long Arm, Pair, Lower,, Front or SWB Rear, 3-5" Lift

Details:

TeraFlex TJ: Lower LCG Long Arms and Lower LCG Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on TJ Wrangler/Unlimited models with 3–5” lifts. Rebuildable joints for easy maintenance. TJ SWB models REQUIRE two pair. LJ LWB models REQUIRE Rear Lower LCG Long Arm Pair (# 1447704 — NOT INCLUDED. MUST be used with Lower LCG Long Arm Frame Bracket Kit (# 1447701 — NOT INCLUDED). Can be added to an existing suspension lift.

Features:

TJ: LCG Long Arms and LCG Long Arm Frame Brackets and Pro LCG 4-Link Long Arm Axle Truss:
• Adjustable (Pro) LCG (4-Link) Long Arms and (Pro) LCG (4-Link) Long Arm Brackets and Rear Upper Pro LCG 4-Link Long Arm Axle Truss balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–5” lift kits
• LCG Long Arms are constructed from durable 1.25” x 0.25” (front upper) or 1.75” x 0.25” (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• On higher lifts, LCG Long Arm Frame Brackets (NOT INCLUDED) and triangulated Pro LCG 4-Link Long Arm Axle Truss (NOT INCLUDED) reposition the frame-end control arm mounting points to relax suspension link angles, which reduces bushing stress during extreme droop and shock load transferred through the LCG Long Arms
• LCG Long Arm Frame Brackets (NOT INCLUDED) and triangulated Pro LCG 4-Link Long Arm Axle Truss (NOT INCLUDED) are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
• Triangulated Rear Upper Pro LCG 4-Link Long Arm Frame Brackets (NOT INCLUDED) and Rear Upper Pro LCG 4-Link Long Arm Axle Truss (NOT INCLUDED) converts the stock rear 5-link suspension to a triangulated rear 4-link suspension for increased flex while eliminating interference w/ other components TJ: Adjustable Control Arms (Short / Long):
• Rebuildable joints for easy maintenance
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• TeraFlex Lifetime Warranty against defects

Fitment:

Vehicle(s):
• TJ Wrangler (short wheelbase) – Front or Rear
• LJ Wrangler Unlimited (long wheelbase) – Front only Specs:
• Lift Height: 3–5” Control Arm Specs: TJ: LCG Long Arm Pair – Lower (Front or SWB Rear) (# 1447702):
• Tube Diameter & Wall: 1.75” x 0.25”
• Factory Length: 15-3/4”
• Min. Length: 31-9/16”
• Max. Length: 36-3/16”
• Bolt – Both: 9/16" (14mm)
• Joint – Axle: 4116260
• Joint – Frame: 4520011

Includes:

• LCG Long Arm – Lower (Front or SWB Rear / Left or Right) (# 1978226) x 2
