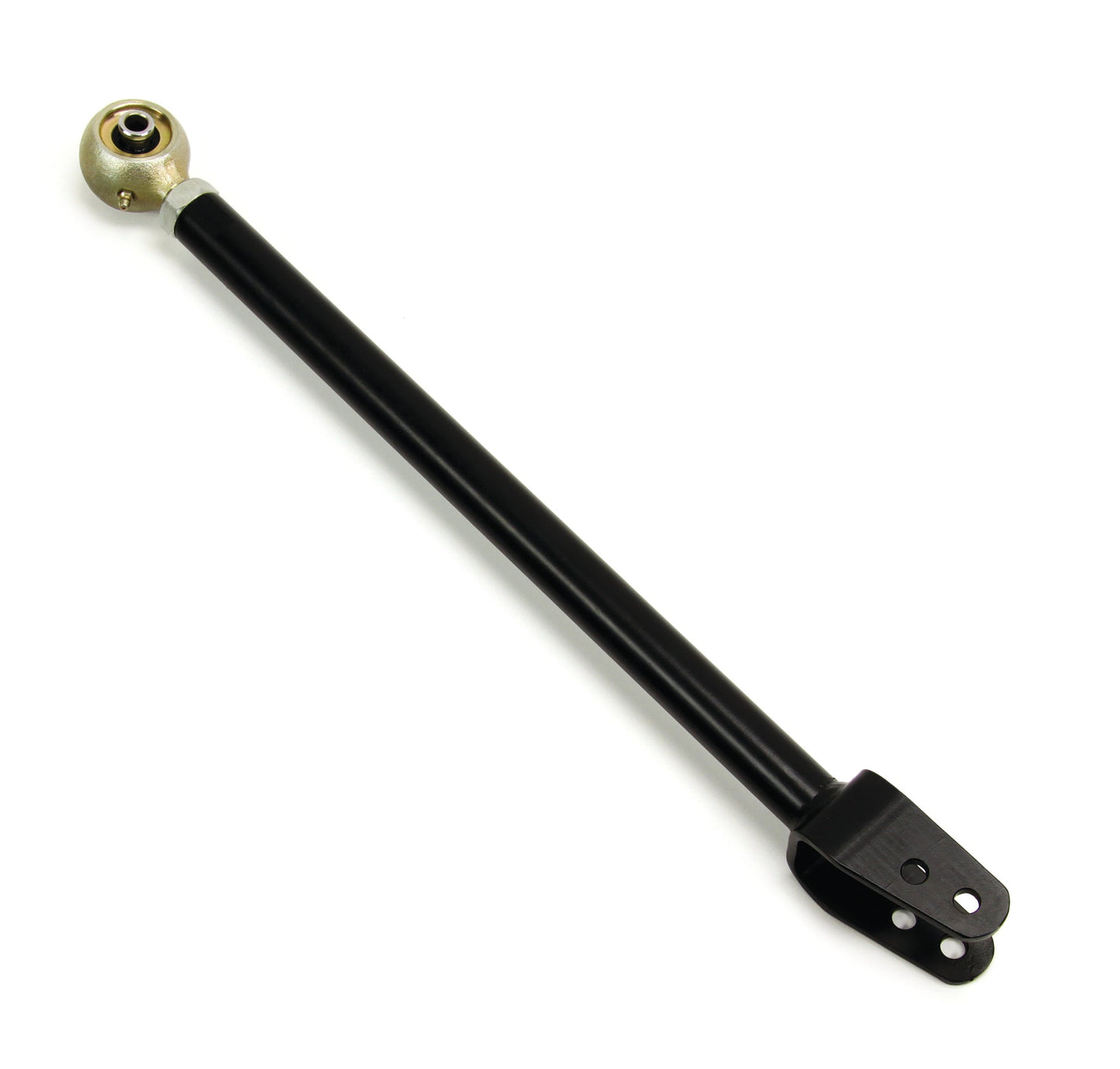

TeraFlex Jeep Wrangler TJ Pro LCG Long Arm, Front Upper, Left or Right, 3-5" Lift

Details:

TeraFlex TJ: Front Upper Pro LCG Long Arms and Front Upper Pro LCG Long Arm Frame Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on TJ Wrangler/Unlimited models with 3–5” lifts. Rebuildable joints for easy maintenance. INCLUDES one Front Upper Pro LCG Long Arm — REQUIRES two. MUST be used with Front Upper Pro LCG Long Arm Frame Brackets (Left: # 9791) (Right: # 9792) — NOT INCLUDED. Can be added to an existing suspension lift.

Features:

TJ: LCG Long Arms and LCG Long Arm Frame Brackets and Pro LCG 4-Link Long Arm Axle Truss:
• Adjustable (Pro) LCG (4-Link) Long Arms and (Pro) LCG (4-Link) Long Arm Brackets and Rear Upper Pro LCG 4-Link Long Arm Axle Truss balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–5” lift kits
• LCG Long Arms are constructed from durable 1.25” x 0.25” (front upper) or 1.75” x 0.25” (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• On higher lifts, LCG Long Arm Frame Brackets (NOT INCLUDED) and triangulated Pro LCG 4-Link Long Arm Axle Truss (NOT INCLUDED) reposition the frame-end control arm mounting points to relax suspension link angles, which reduces bushing stress during extreme droop and shock load transferred through the LCG Long Arms
• LCG Long Arm Frame Brackets (NOT INCLUDED) and triangulated Pro LCG 4-Link Long Arm Axle Truss (NOT INCLUDED) are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
• Triangulated Rear Upper Pro LCG 4-Link Long Arm Frame Brackets (NOT INCLUDED) and Rear Upper Pro LCG 4-Link Long Arm Axle Truss (NOT INCLUDED) converts the stock rear 5-link suspension to a triangulated rear 4-link suspension for increased flex while eliminating interference w/ other components TJ: Adjustable Control Arms (Short / Long):
• Rebuildable joints for easy maintenance
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• TeraFlex Lifetime Warranty against defects

Fitment:

Vehicle(s):
• TJ Wrangler (short wheelbase)
• LJ Wrangler Unlimited (long wheelbase) Specs:
• Lift Height: 3–5” Control Arm Specs: TJ: Pro LCG Long Arm – Front Upper (Left or Right) (# 1649839):
• Tube Diameter & Wall: 1.25” x 0.25”
• Factory Length: 15-1/8”
• Min. Length: 22-1/2”
• Max. Length: 24-7/8”
• Bolt – Both: 7/16” (12mm)
• Joint – Axle: NA
• Joint – Frame: 4116230

Includes:

• Pro LCG Long Arm – Front Upper (Left or Right)
