TeraFlex Jeep Wrangler TJ SWB 5" Pro LCG Long Arm Suspension System, No Shocks

Details:

TeraFlex LCG (Low Center-of-Gravity) Long Arm Suspension Systems are engineered for hardcore Jeepers who don’t want to give up on-road comfort and control in their TJ Wrangler/Unlimited. These complete systems include all necessary components including LCG Long Arm Brackets. For ultimate rock crawling, trail riding, and high-speed road stability, look no further than the TeraFlex Pro LCG Long Arm Suspension System. These kits are engineered for the aggressive off-road enthusiast who wants the best suspension performance on and off road. Up front, the Pro LCG expands the performance of the stock 5-link suspension configuration with our adjustable LCG Long Arms & Brackets. Our Front Upper Pro LCG Long Arms are more than 9” longer than stock! Around back, the stock 5-link rear suspension (including track bar) is replaced by our adjustable triangulated Pro LCG 4-Link Long Arm Suspension & Frame Brackets w/ Rear Axle Truss. The Rear Upper Pro LCG 4-Link Long Arm Frame Brackets feature adjustable anti-squat tunability to fine tune the suspension. Our adjustable LCG Long Arms balance front caster angles and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position. On 3–5” lifts, LCG Long Arm Brackets and 4-Link Rear Axle Truss reposition the frame-end control arm mounting points to relax suspension link angles. This reduces bushing stress during extreme droop as well as shock load transferred through the LCG Long Arms. The Front [High Steer] HD Adjustable Track Bar, Drop Pitman Arm, and triangulated Rear Upper Pro LCG 4-Link Long Arms improve steering response, center the axles to optimize vehicle roll center, and reduce body roll to for unsurpassed handling. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH). TeraFlex Pro LCG Long Arm Suspension Systems are the best of both worlds! Does NOT include shocks.

Features:

5” Pro LCG Long Arm Suspension Systems:
• 5” Lift = 37” Tire
• Maximum off-road articulation combined w/ increased on-road comfort and stability
• Adjustable anti-squat tunability to fine tune the suspension
• Complete adjustable front and rear LCG Long Arm Suspension System
• Rear triangulated 4-link suspension eliminates rear track bar
• Adjustable LCG Long Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–5” lift kits
• On higher lifts, LCG Long Arm Brackets and 4-Link Rear Axle Truss reposition the frame-end control arm mounting points to relax suspension link angles, which reduces bushing stress during extreme droop and shock load transferred through the LCG Long Arms
• LCG Long Arm Brackets are gusseted and reinforced for superior strength w/ reduce NVH compared to other long arm kits
• Front [High Steer] HD Adjustable Track Bar, Drop Pitman Arm (5” lift), and triangulated Rear Upper Pro LCG 4-Link Long Arms improve steering response, center the axles to optimize vehicle roll center, and reduce body roll for unsurpassed handling
• Pro LCG High Steer System (# 1849000) recommended on 4”+ lifts — available w/ our 5” Pro LCG lift LCG Long Arm Suspension Systems:
• Maximum ground clearance w/ a Low Center-of-Gravity (LCG)
• Dependable performance w/ zero worries
• Positive, responsive handling w/ reduced NVH
• Easy-to-install Lower LCG Long Arm Brackets don’t hinder transfer case access
• Full range of movement for off-road flex and articulation
• Fits all OEM axles including Dana 30, 35, 44, and Rubicon 44 (call for other axles)
• TeraFlex Limited Lifetime Warranty against defects

Fitment:

Vehicle(s):
• TJ Wrangler (short wheelbase) Specs:
• Lift Height: 5”
• Max Tire Diameter: 37”

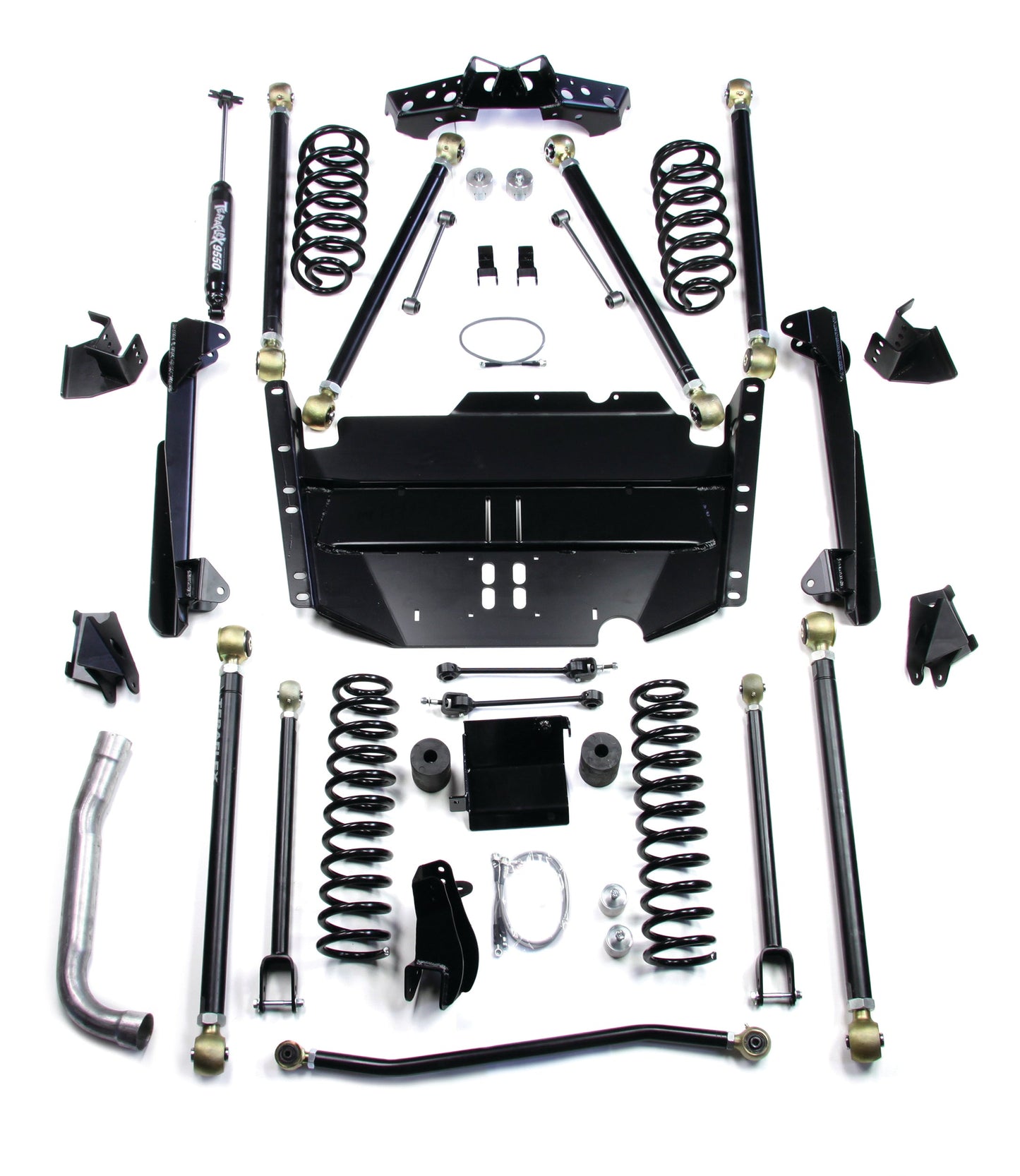

Includes:

• 5” Lift Coil Spring Pair (Front: # 1843502) (Rear: # 1844502)
• Pro LCG Long Arm & Bracket Upgrade Kit – Front Upper (3–5” Lift) (# 1443470)
• LCG Long Arm & Bracket Upgrade Kit – Lower (3–5” Lift) (# 1447700)
• Pro LCG 4-Link Long Arm & Bracket Upgrade Kit – Rear Upper (3–5” Lift) (# 1444870)
• HD Adjustable Track Bar – Front (3.5–6” Lift) (# 1743070)
• High Steer Track Bar Bracket Kit – Front Upper (# 1743031)
• Drop Pitman Arm (3.5–6” Lift) (# 4922133)
• 2.25” Bump Stop Extension Kit – Front Upper (LCG Lift) (# 1910204)
• 1.75” Bump Stop Strike Pad Kit w/ Spring Retainer – Rear Lower (LCG Lift) (# 1949011)
• 10” Front Sway Bar Quick Disconnect Kit (3–6” Lift) (# 1743090)
• 10.5” Sway Bar Link Kit – Rear (2.5–5” Lift) (# 1944011)
• HD BellyUp Skid Plate Kit (# 4648403)
• HD Steering Box Skid Plate Kit (# 4627400)
• 2003–2006 TJ: 1” Transfer Case Lowering Spacer Kit (# 1900103)
• 1997–2002 TJ: Shift Linkage Plate Kit (# 1900001)
• 2003–2006 TJ: Shift Linkage Plate Kit (# 1900003)
• 26” Stainless-Steel Braided Brake Line Kit – Front & Rear (# 4350400)
• Exhaust Pipe Extension
• Shock Extension Kit – Rear Lower (# 1544790)
• All necessary hardware
• And more
