TeraFlex Jeep Wrangler TJ SWB Pro LCG 4-Link Long Arm & Bracket Upgrade Kit, Rear Upper, 3-5" Lift

Details:

Upgrade your rear upper short control arm suspension to an adjustable triangulated Pro LCG 4-Link Long Arm Suspension System with the TeraFlex TJ SWB: Rear Upper Pro LCG 4-Link Long Arm & Bracket Upgrade Kit. Provides complete alignment adjustability and dependability for maximum performance on TJ Wrangler models with 3–5” lifts. CAD-engineered TeraFlex TJ: (Pro) LCG (4-Link) Long Arm Frame Brackets and triangulated Rear Upper Pro LCG 4-Link Long Arm Axle Truss are designed for maximum strength. The 1/4”-thick steel brackets are CNC laser cut and precision bent for accurate fitment. Frame Brackets locate using the factory belly pan skid plate bolt holes then stitch welded. These are the same components found in our high-end Enduro LCG and/or Pro LCG Long Arm Suspension Systems. Triangulated Rear Upper Pro LCG 4-Link Long Arm Frame Brackets and triangulated Rear Upper Pro LCG 4-Link Long Arm Axle Truss convert the stock rear 5-link suspension to a triangulated rear 4-link suspension for increased flex while eliminating interference w/ other components. REQUIRES Lower LCG Long Arm & Bracket Upgrade Kit (TJ SWB: # 1447700) (LJ LWB: # 1447780). Combine this kit with the Front Upper Pro LCG Long Arm & Bracket Upgrade Kit (TJ: # 1443470) to step up to our Pro LCG Long Arm Suspension System. Can be added to an existing suspension lift.

Features:

TJ: LCG Long Arms and LCG Long Arm Frame Brackets and Pro LCG 4-Link Long Arm Axle Truss:
• Adjustable (Pro) LCG (4-Link) Long Arms and (Pro) LCG (4-Link) Long Arm Brackets and Rear Upper Pro LCG 4-Link Long Arm Axle Truss balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–5” lift kits
• LCG Long Arms are constructed from durable 1.25” x 0.25” (front upper) or 1.75” x 0.25” (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• On higher lifts, LCG Long Arm Frame Brackets and triangulated Pro LCG 4-Link Long Arm Axle Truss reposition the frame-end control arm mounting points to relax suspension link angles, which reduces bushing stress during extreme droop and shock load transferred through the LCG Long Arms
• LCG Long Arm Frame Brackets and triangulated Pro LCG 4-Link Long Arm Axle Truss are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits
• Triangulated Rear Upper Pro LCG 4-Link Long Arm Frame Brackets and Rear Upper Pro LCG 4-Link Long Arm Axle Truss converts the stock rear 5-link suspension to a triangulated rear 4-link suspension for increased flex while eliminating interference w/ other components TJ: Adjustable Control Arms (Short / Long):
• Rebuildable joints for easy maintenance
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• TeraFlex Lifetime Warranty against defects

Fitment:

Vehicle(s):
• TJ Wrangler (short wheelbase) Specs:
• Lift Height: 3–5” Control Arm Specs: TJ SWB: Pro LCG 4-Link Long Arm Pair – Rear Upper (# 1447712):
• Tube Diameter & Wall: 1.75” x 0.25”
• Factory Length: 13-1/4”
• Min. Length: 31-9/16”
• Max. Length: 36-3/16”
• Bolt – Both: 9/16” (14mm)
• Joint – Axle: 4116260
• Joint – Frame: 4116270

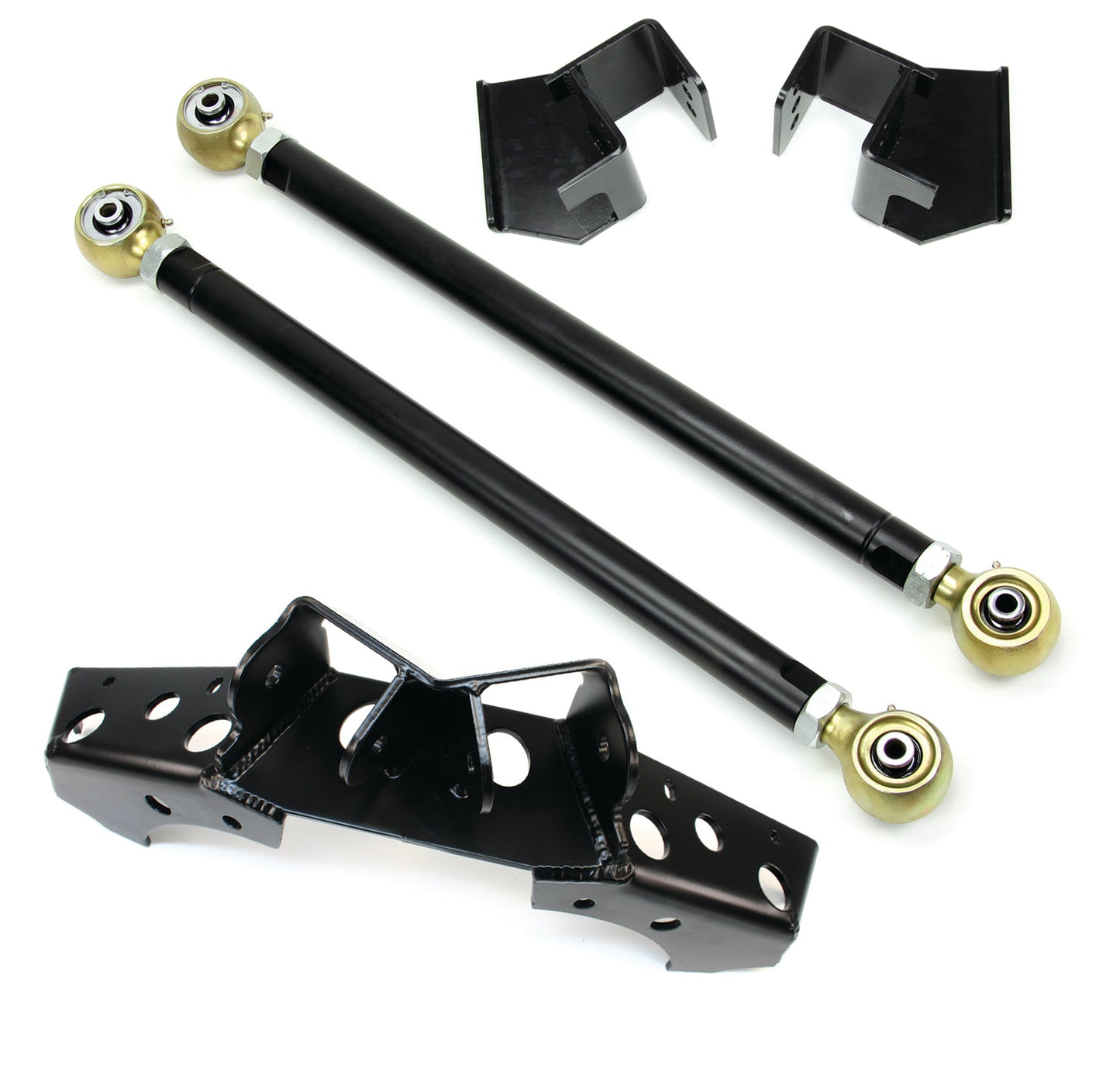

Includes:

Pro LCG 4-Link Long Arm Pair – Rear Upper (# 1447712):
• Arm – Rear Upper (Left or Right) (# 14477121) x 2 Pro LCG 4-Link Long Arm Frame Brackets:
• Bracket – Rear Upper Left (# 97881)
• Bracket – Rear Upper Right (# 97882)
• All necessary hardware Pro LCG 4-Link Long Arm Axle Truss:
• Truss – Rear Upper (# 1944044)
• All necessary hardware
